Smart 7 Series

Smart 7 Series

The intelligent 7-inch touchscreen monitor series.
Powered by
PageOS, with high brightness, intuitive
controls and rugged
versatility. Smart 7 sets the
standard for any set.

The intelligent 7-inch touchscreen monitor series.
Powered by
PageOS, with high brightness, intuitive
controls and rugged
versatility. Smart 7 sets the
standard for any set.

Explore Smart 7

Smart 7 Series

Smart 7 Series

The intelligent 7-inch touchscreen monitor series.
Powered by
PageOS, with high brightness, intuitive
controls and rugged
versatility. Smart 7 sets the
standard for any set.

The intelligent 7-inch touchscreen monitor series.
Powered by
PageOS, with high brightness, intuitive
controls and rugged
versatility. Smart 7 sets the
standard for any set.

Cine 7

Cine 7

The Cine Standard

The Cine Standard

$2,199.00
Shop Now Learn More

Ultra 7

Ultra 7

The Rugged Powerhouse

The Rugged Powerhouse

$2,999.00
Shop Now Learn More

Indie 7

Indie 7

The Creative Essential

The Creative Essential

$1,399.00
Shop Now Learn More

Compare
Smart 7 Models

products products
Ultra 7
Learn More Shop Now Starting at $2,999.00
products products
Cine 7
Learn More Shop Now Starting at $2,199.00
products products
Indie 7
Learn More Shop Now Starting at $1,399.00
Brightness
Brightness

2300nits

1800nits

1000nits

SDI
SDI

1 x 6G-SDI Input (4Kp30)
1 x 6G-SDI In / Out (4Kp30)

1 x 3G-SDI Input
(1080p60)
1 x 3G-SDI In /
Out (1080p60)

1 x 3G-SDI Input
(1080p60)
1 x 3G-SDI In /
Out (1080p60)

HDMI
HDMI

1 x HDMI 2.0 In
(4Kp60)
1 x HDMI 2.0 Out
(4Kp60)

1 x HDMI 2.0 In
(4Kp30)
1 x HDMI 2.0 Out
(4Kp30)

1 x HDMI 2.0 In
(4Kp30)
1 x HDMI 2.0 Out
(4Kp30)

Panel Resolution
Panel Resolution

1920x1200

1920x1200

1920x1200

Camera Control Compatibility*
Camera Control Compatibility*

ARRI, RED®,
Sony VENICE

ARRI, RED®,
Sony VENICE

RED®

Control Interface
Control Interface

Joystick, Buttons,
Touch

Touchscreen

Touchscreen

IP Rating
IP Rating

IP53

Wireless Video
Wireless Video

Built-in Bolt 6 TX
/ RX Options

Bolt 6 TX / RX
Monitor Modules

Bolt 6 TX / RX
Monitor Modules

Battery Support
Battery Support

Optional Gold or V-Mount Micro

Battery Plates

Sony L-Series,
Optional Gold or
V-Mount

Sony L-Series,
Optional Gold or
V-Mount

Control Ports
Control Ports

Ethernet, 5-Pin
locking USB

Ethernet, USB-
Micro

USB-Micro

Power Input
Power Input

2-Pin Locking
Connector

2-Pin Locking
Connector

Barrel Connector

Weight
Weight

900g / 32 oz

556g / 20 oz

556g / 18.9 oz

*Sold Separately

coming soon

Smart 7 + Teradek Bolt 6

Smart 7 + Teradek Bolt 6

Smart 7 + Teradek Bolt 6

Smart 7 + Teradek Bolt 6

Integrated
Zero-Delay
Wireless Video

Integrated
Zero-Delay
Wireless Video

Ultra 7 has optional built-in Bolt 6 TX /
RX versions,
giving you a self-contained
wireless monitor for any
environment.
Cine 7 and Indie 7 are compatible with
any Bolt 6 (or Bolt 4K) monitor module.

Ultra 7 has optional built-in Bolt 6 TX /
RX versions,
giving you a self-contained
wireless monitor for any
environment.
Cine 7 and Indie 7 are compatible with
any Bolt 6 (or Bolt 4K) monitor module.

BACKWARDS COMPATIBLE

BACKWARDS COMPATIBLE

Works with Teradek
Bolt 4K and
Bolt 6

Works with Teradek
Bolt 4K and
Bolt 6

LONG RANGE

LONG RANGE

750ft & 1500ft range
models
available

750ft & 1500ft range
models
available

SEAMLESS DESIGN

SEAMLESS DESIGN

Ergonomic, Cable-Free
Workflow

Ergonomic, Cable-Free
Workflow

BACKWARDS COMPATIBLE

BACKWARDS COMPATIBLE

Works with Teradek
Bolt 4K and
Bolt 6

Works with Teradek
Bolt 4K and
Bolt 6

LONG RANGE

LONG RANGE

750ft & 1500ft range
models
available

750ft & 1500ft range
models
available

SEAMLESS DESIGN

SEAMLESS DESIGN

Ergonomic, cable-Free
Workflow

Ergonomic, cable-Free
Workflow

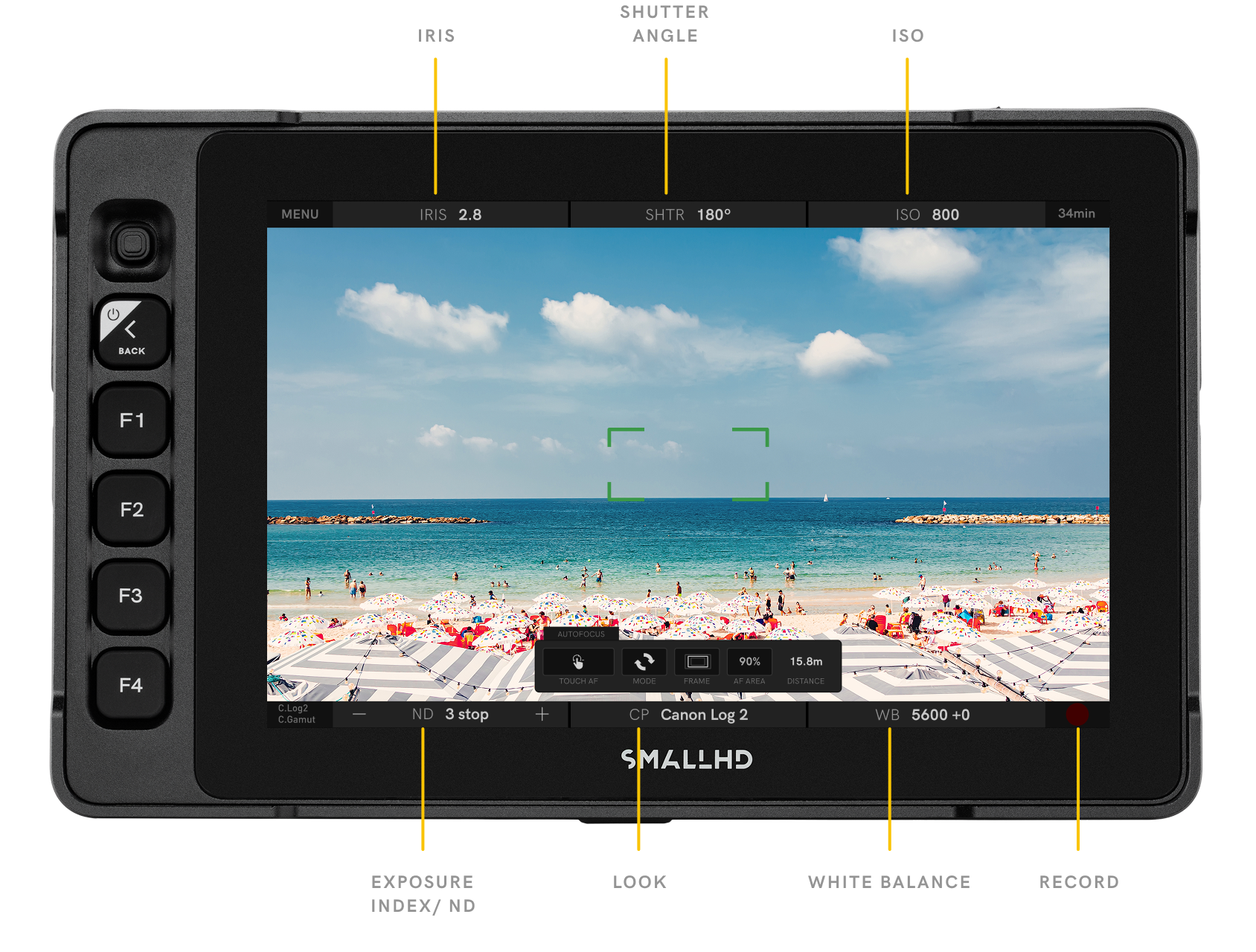

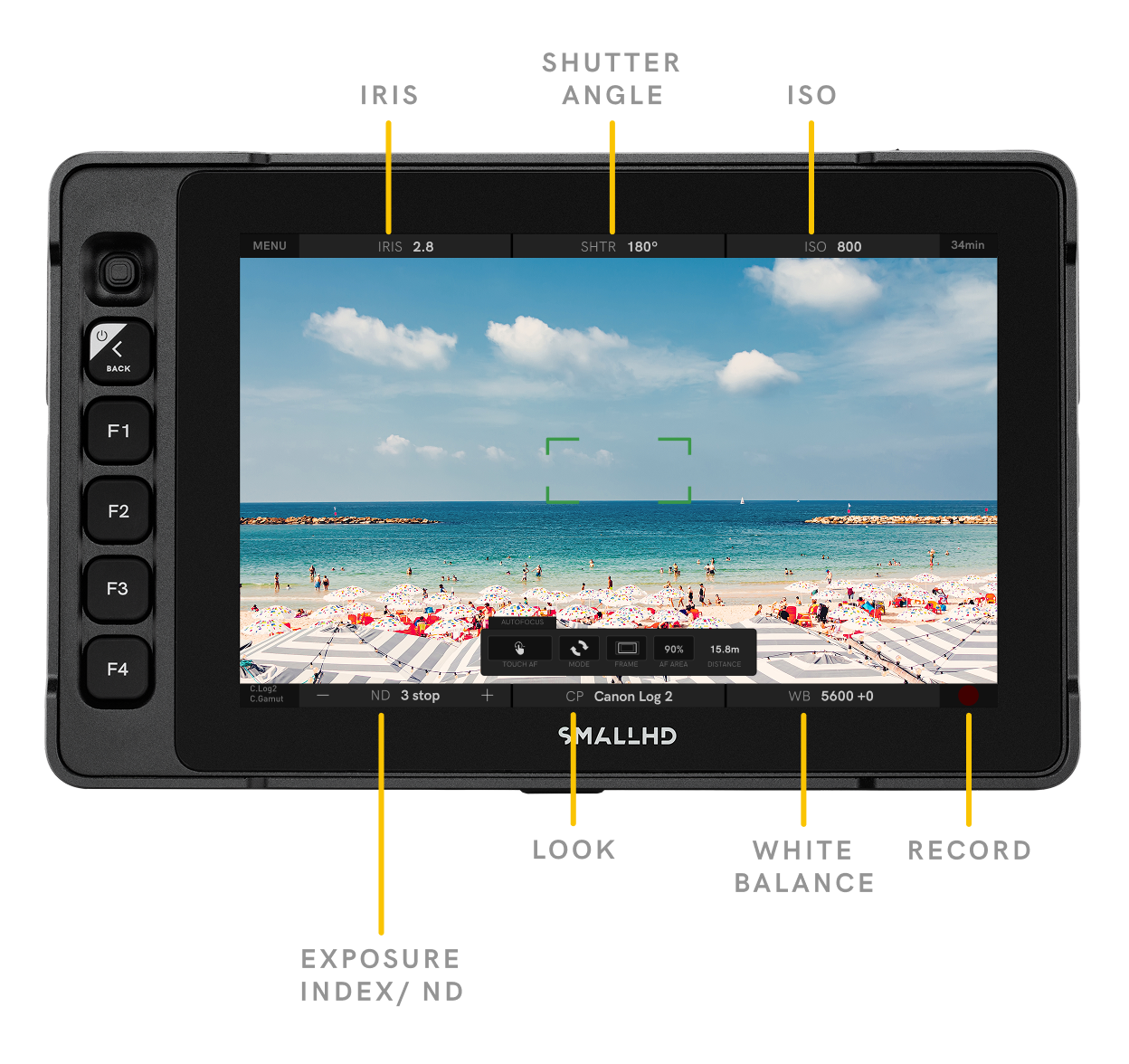

Camera Control

Camera Control

Your monitor is the
brain of the operation.

Your monitor is the
brain of the operation.

Your monitor is the
the brain of the
operation.

Your monitor is the
the brain of the
operation.

Transform your monitor into the central command
hub of your camera rig. Unlock access
to ARRI,
Sony VENICE, VENICE 2, or RED® cameras via
licensed software upgrades (sold
separately) to
control internal camera settings.*

Transform your monitor into the central command
hub of your camera rig. Unlock access
to ARRI,
Sony VENICE, VENICE 2, or RED® cameras via
licensed software upgrades (sold
separately) to
control internal camera settings.*

  • Start/Stop Record
  • FPS, Shutter Speed
  • Partial LUT Configuration
  • Clip Playback
  • ISO
  • White Balance

*Indie 7 is limited to RED DSMC2 & RCP2 capability

*Indie 7 is limited to RED DSMC2 & RCP2 capability

PageOS

PageOS

Next-Gen Tools, Customizable
Workflow,
Premium UX

Next-Gen Tools, Customizable
Workflow,
Premium UX

See What’s New in PageOS

See What’s New in PageOS

See What’s New in PageOS

See What’s New in PageOS

Smarter, more intuitive software tools for at-a-glance
adjustments, effortless navigation, and more accurate
exposure and color control. Personalized Page Profile,
Focus and Exposure Assist, Lookaround Camera Control,
Tetrahedral LUT InterpolationRendition, Advanced Teradek RT
Overlays
, and more.

Smarter, more intuitive software tools for at-a-glance
adjustments, effortless navigation, and more accurate
exposure and color control. Personalized Page Profile,
Focus and Exposure Assist, Lookaround Camera Control,
Tetrahedral LUT InterpolationRendition, Advanced Teradek RT
Overlays
, and more.

Look-Around Camera Control

Look-Around Camera Control

A Camera Interface on
Every Page

A Camera Interface on
Every Page

View and adjust crucial camera-control functions and
PageOS tools at the same time on Smart 7 Series
Monitors with a camera-control interface anchored to
every page.

View and adjust crucial camera-control functions and
PageOS tools at the same time on Smart 7 Series
Monitors with a camera-control interface anchored to
every page.

View and adjust crucial camera-control
functions and PageOS tools at the same
time on Smart 7 Series Monitors with a
camera-control interface anchored to
every page.

View and adjust crucial camera-control
functions and PageOS tools at the same
time on Smart 7 Series Monitors with a
camera-control interface anchored to
every page.

Teradek RT Overlays

Teradek RT Overlays

Lens Control Overlays

Lens Control Overlays

View critical lens, focus, iris, and zoom
data on your
monitor. Quickly create,
edit, and delete visual marks
on the
focus scale, set on-screen limits, and
even
pinch-zoom the scale for extremely
precise focal-
change sequences.

View critical lens, focus, iris, and zoom
data on your
monitor. Quickly create,
edit, and delete visual marks
on the
focus scale, set on-screen limits, and
even
pinch-zoom the scale for extremely
precise focal-
change sequences.

EL Zone

EL Zone

Light Metering Evolved

Light Metering Evolved

Developed by legendary cinematographer,
Ed
Lachman, ASC, EL Zone is a stop-based
exposure map
tool that works like a virtual
spot meter, replacing IRE
exposure values
with stops. Sensor data from the
camera
provides a reference point, and a false color
represents each stop above and below 18%
gray,
allowing for easier, more intuitive on-
set
communication.

Developed by legendary cinematographer,
Ed
Lachman, ASC, EL Zone is a stop-based
exposure map
tool that works like a virtual
spot meter, replacing IRE
exposure values
with stops. Sensor data from the
camera
provides a reference point, and a false color
represents each stop above and below 18%
gray,
allowing for easier, more intuitive on-
set
communication.

Horizon Indicator

Horizon Indicator

Keep Your Frame on the Level

Keep Your Frame
on the Level

A built-in digital bubble-level overlay you can apply to
the image to precisely gauge camera rotation.

A built-in digital bubble-level overlay you
can apply to the image to precisely gauge
camera rotation.
