Vision Series

Set-to-Suite
Monitoring in
4K HDR

Shop Now

Vision Series

Set-ready construction meets suite-ready
performance in
Vision Series 4K Monitors.
Experience true PQ1000 HDR in
DCI 4K
resolution, whether you’re shooting on
location or
finishing in post.

10-bit

Color Depth

DCI-P3

Color Gamut

1000nits

Full Screen Luminance

1,000,000:1

Contrast Ratio

DCI 4K

Resolution

PageOS

Software

Compare
Vision Monitors

Display Size

17.3in / 44cm

24.1in / 61cm

Weight

12.9lbs / 5.8kg

22.7lbs / 10.3kg

Color Coverage

98.8% DCI-P3

Panel Resolution

3840 x 2160

4096 x 2160

Color Bit Depth

10-bit

True 10-bit

Backlight Type

Full-Array Local Dimming

Contrast Ratio

1,000,000:1

Video I/O

4x 12G/6G/3G/HD-SDI
HDMI 2.0

Max Brightness

1000nits

Power Input

14.4V 6.2A DC

22V 8.3A DC

Pixel Density

254ppi

192ppi

Bottom Cheese Stick

Included

Sold Separately

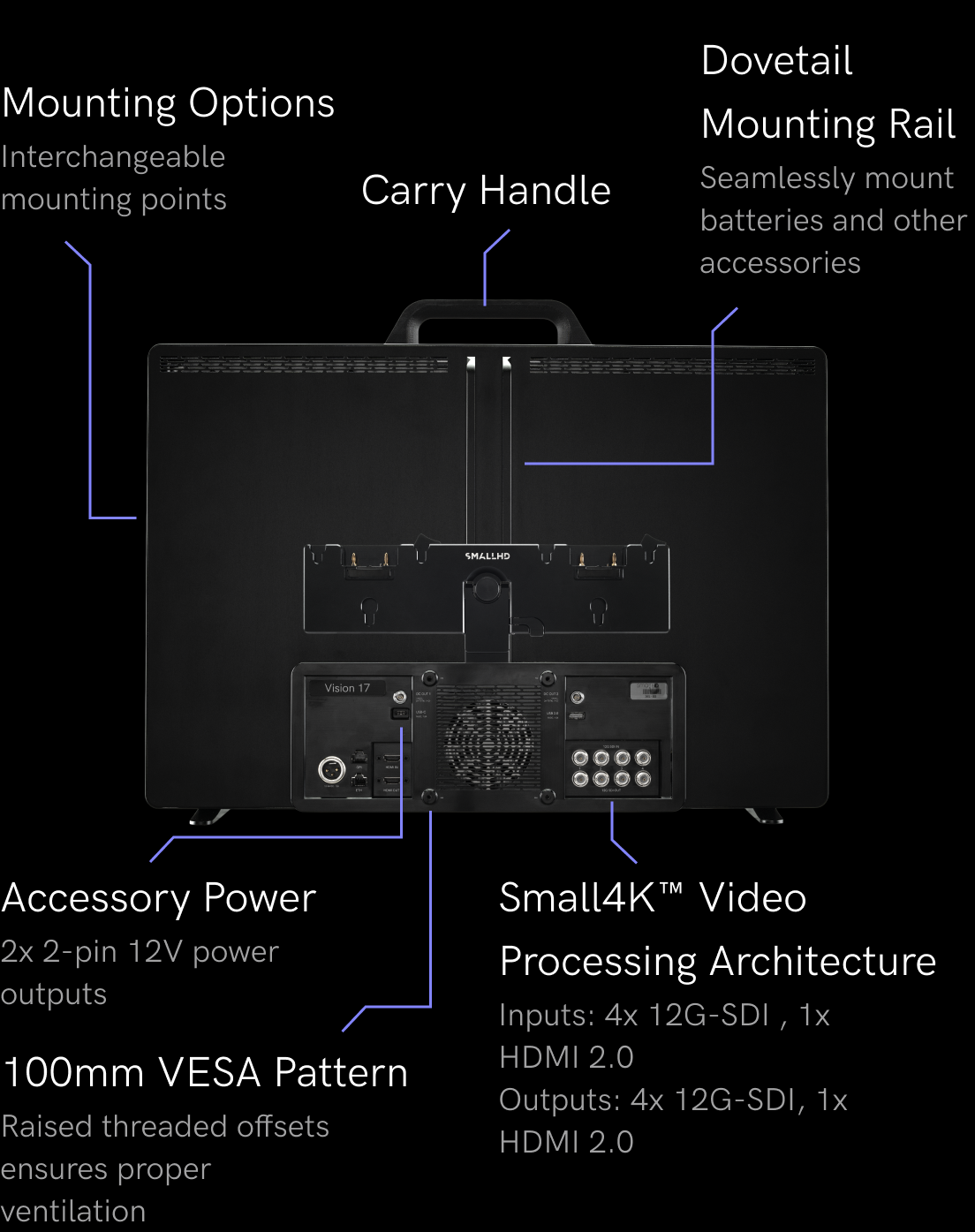

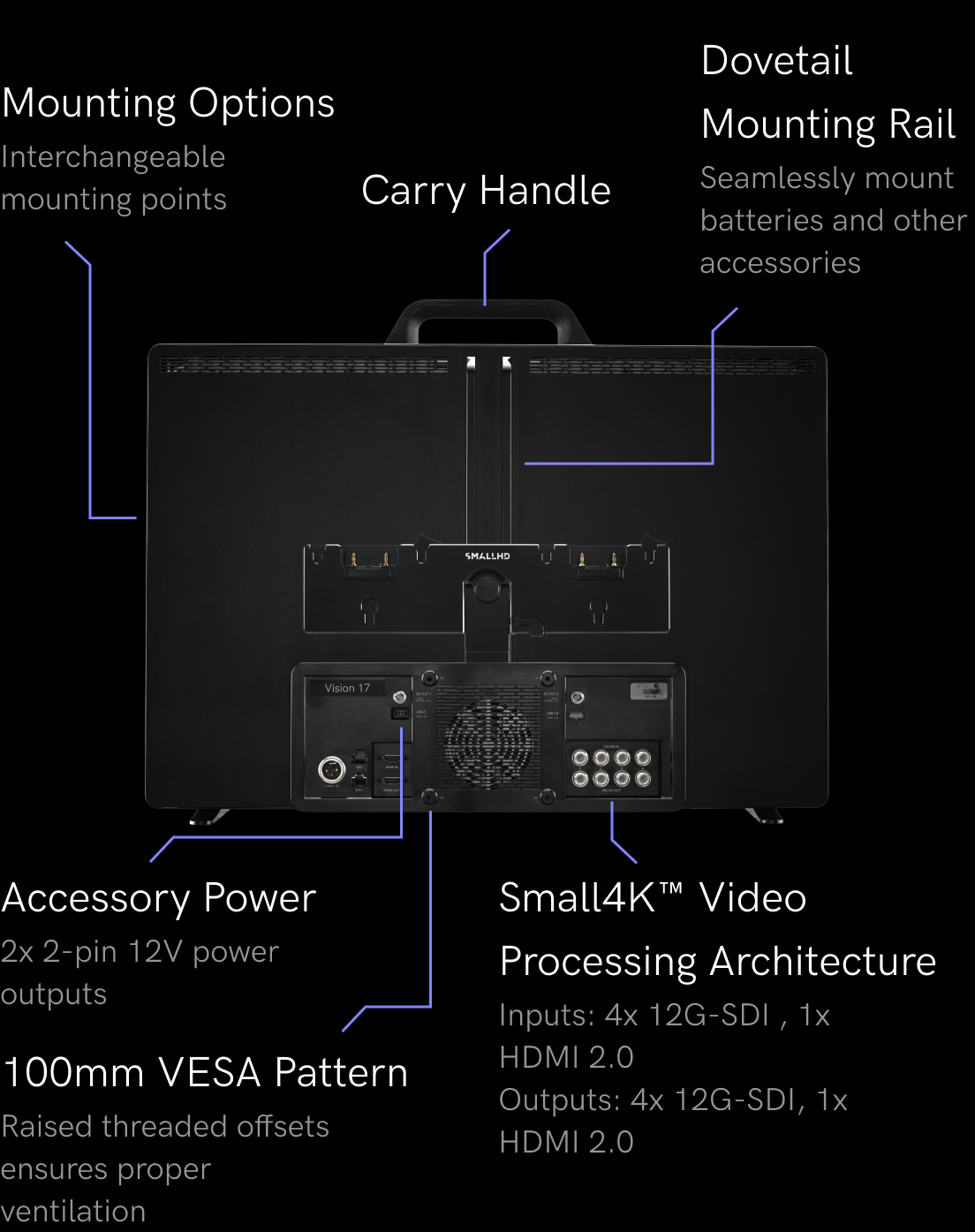

Mounting Options

1x 110mm VESA-
compatible rear mount
26x 1/4”-20 mounting
points
4x 3/8”-16 mounting points

PageOS

A Dedicated OS Designed for Production Monitors

All our production monitors run on PageOS, which features the powerful new functionality of Multi-View & seamless integration with Calman® calibration software on 4K production monitors. Additionally, PageOS features highly-anticipated tools like Look-Around Camera Control on all pages, EL Zone false color, Tetrahedral LUT interpolation, improved HD upscaling, and more.

Learn More About PageOS Learn More About PageOS

Color Pipe

Easily configure each of the five independent 4K
video inputs on
SmallHD 4K Production monitors
with a custom input and output
display
configuration. Convert camera log signals into
multiple HDR
or SDR display setups, and switch
effortlessly between these
presets with the click of
a function button on any page.

Color Pipe

Easily configure each of the five independent 4K
video inputs on
SmallHD 4K Production monitors
with a custom input and output
display
configuration. Convert camera log signals into
multiple HDR
or SDR display setups, and switch
effortlessly between these
presets with the click of
a function button on any page.

Multi-View

View up to four camera feeds at once on our Cine,
OLED,
and Quantum Series or up to two camera
feeds on Vision
Series. Select from several options
for multi-view
configuration, and assign scopes and
other video engineering
tools for an endless variety
of customizable layouts.

Multi-View

View up to four camera feeds at once on our Cine,
OLED,
and Quantum Series or up to two camera
feeds on Vision
Series. Select from several options
for multi-view
configuration, and assign scopes and
other video engineering
tools for an endless variety
of customizable layouts.

Integrated Calibration

SmallHD monitors are Calman® Ready, with a seamless integration
tool for Cine and OLED 4K Series Production Monitors. Connect
your 4K monitor via ethernet to a computer with a calibration probe
running Portrait Displays® Calman®, and a calibration LUT will be
uploaded directly into your monitor when finished.

Integrated Calibration

SmallHD monitors are Calman® Ready, with a
seamless integration tool for Cine and OLED 4K
Series Production Monitors. Connect your 4K
monitor via ethernet to a computer with a
calibration probe running Portrait Displays®
Calman®, and a calibration LUT will be uploaded
directly into your monitor when finished.

EL Zone

The stop-based exposure map tool—developed in collaboration
with legendary cinematographer, Ed Lachman, ASC—that works
like a virtual spot meter, replacing IRE exposure values with stops.
Sensor data from the camera provides a reference point, and a false
color represents each stop above and below 18% gray, allowing for
easier, more intuitive on-set communication.

EL Zone

The stop-based exposure map tool—developed in
collaboration with legendary cinematographer, Ed
Lachman, ASC—that works like a virtual spot
meter, replacing IRE exposure values with stops.
Sensor data from the camera provides a reference
point, and a false color represents each stop above
and below 18% gray, allowing for easier, more
intuitive on-set communication.

Livegrade Integration

Pomfort Livegrade is now an integrated plug-in, enabling colorists
and DITs to connect their reference monitor with a computer via
single Ethernet cable, transforming their monitor into a dual-
purpose color grading tool.

Livegrade Integration

Pomfort Livegrade is now an integrated plug-in,
enabling colorists and DITs to connect their
reference monitor with a computer via single
Ethernet cable, transforming their monitor into a
dual-purpose color grading tool.

Video Engineering Tools

4K Waveform

Robust exposure tool plotting your images luminance
and chrominance to a graph that matches your screen
left to right.

Vectorscope

Plots the hue + saturation onto a color wheel, so to help
gauge complimentary color.

Histogram

High resolution, low latency histogram is perfect
for determining the overall exposure balance of
your image.

Exposure Measurement

Choose from industry-standard options or create your
own custom False Color mapping.

Video Engineering Tools

Explore the most popular Video Engineering tools:

4K Waveform

Robust exposure tool
plotting your images
luminance and
chrominance to a graph
that matches your
screen left to right.

Vectorscope

Plots the hue +
saturation onto a color
wheel, so to help gauge
complimentary color.

Histogram

High resolution, low
latency histogram is
perfect for determining
the overall exposure
balance of your image.

Exposure
Measurement

Choose from industry-
standard options or
create your own custom
False Color mapping.

Vision Monitors

Here’s What Professionals Say:

``With 4K HDR and SDR deliverables, the need has
grown for color accuracy and critical focus visual
verification. The Vision Series fills a space between a
field monitor and a display that is dedicated to color
grading. The usefulness of 4K monitors growing across
departments to help communicate ideas and changes
within frame. Higher demands for premium content need
these tools that help lift productions to new heights.

PHIL HOLLAND

Founder, Director and Cinematographer

``I have really leaned on lighting everything from my
Vision 17... This monitor is amazing, the color accuracy
is on point, so are the brightness options. It’s a fantastic
lighting monitor for HDR and SDR.”

Graham Robbins

Cinematographer

``The Vision monitors can be used not only in the
studio, but also in rough terrain, when we only can run
on battery - which we will test when we shoot in forests
and caves. This shows again that the whole SmallHD
4K Series is more than perfect for use on set and not
only in studio."

Christian Saure

DIT

OLED Monitors

Here’s What
Professionals Say:

"With 4K HDR and SDR deliverables, the need has grown for color accuracy and critical focus visual verification. The Vision Series fills a space between a field monitor and a display that is dedicated to color grading. The usefulness of 4K monitors growing across departments to help communicate ideas and changes within frame. Higher demands for premium content need these tools that help lift productions to new heights.

PHIL HOLLAND
Founder, Director and Cinematographer

"I have really leaned on lighting everything from my Vision 17... This monitor is amazing, the color accuracy is on point, so are the brightness options. It’s a fantastic lighting monitor for HDR and SDR.”

GRAHAM ROBBINS
Cinematographer

"Coming from a stills background color accuracy is crucial, the OLED 22 takes away so much of the guesswork that I've had to make with a less color accurate display. Being able to see color accurately cuts down on post workflows and the 22" display gives us a certain confidence that we are capturing what we need, and seeing small details. I love it"

CHRISTIAN SAURE
DIT

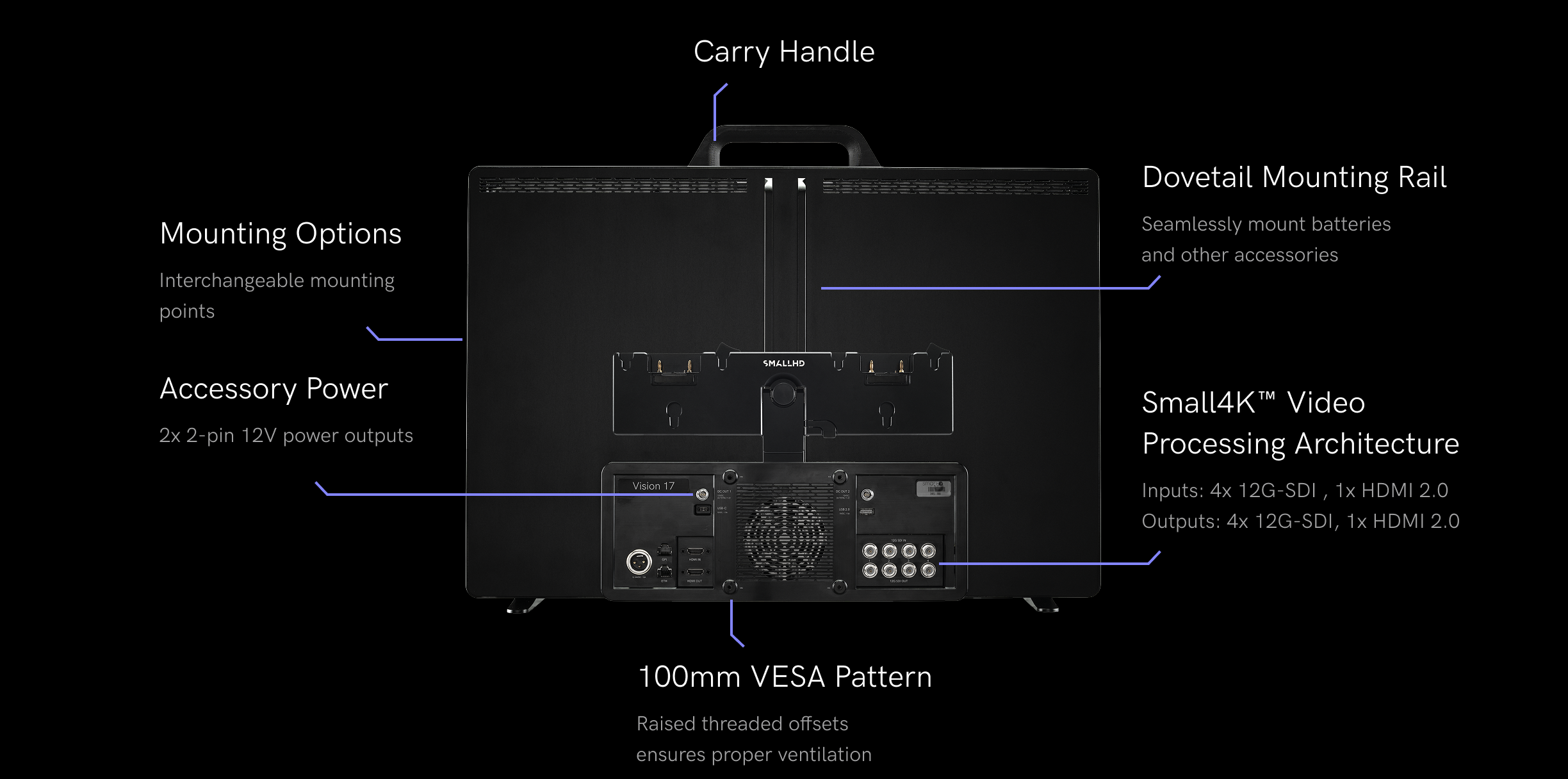

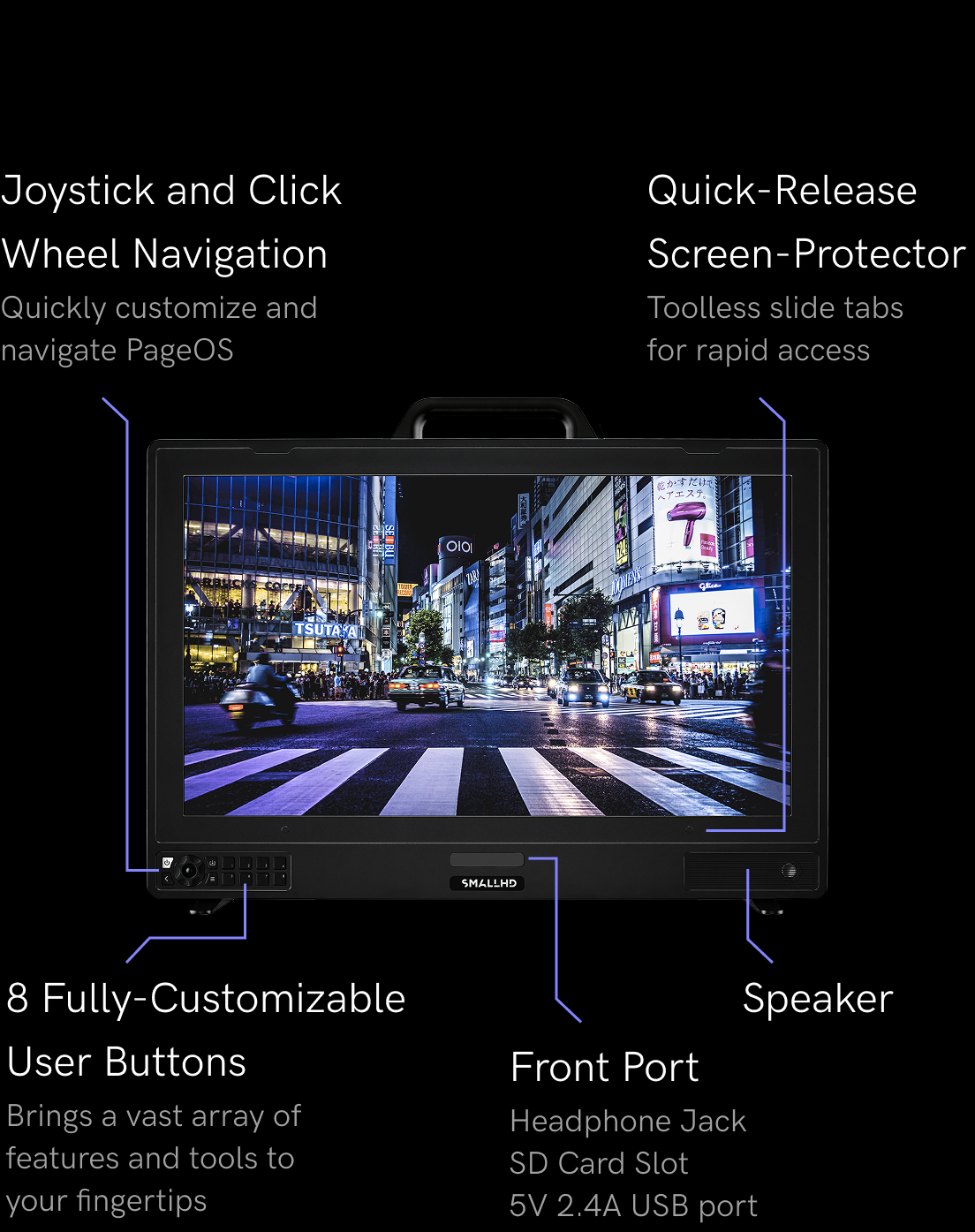

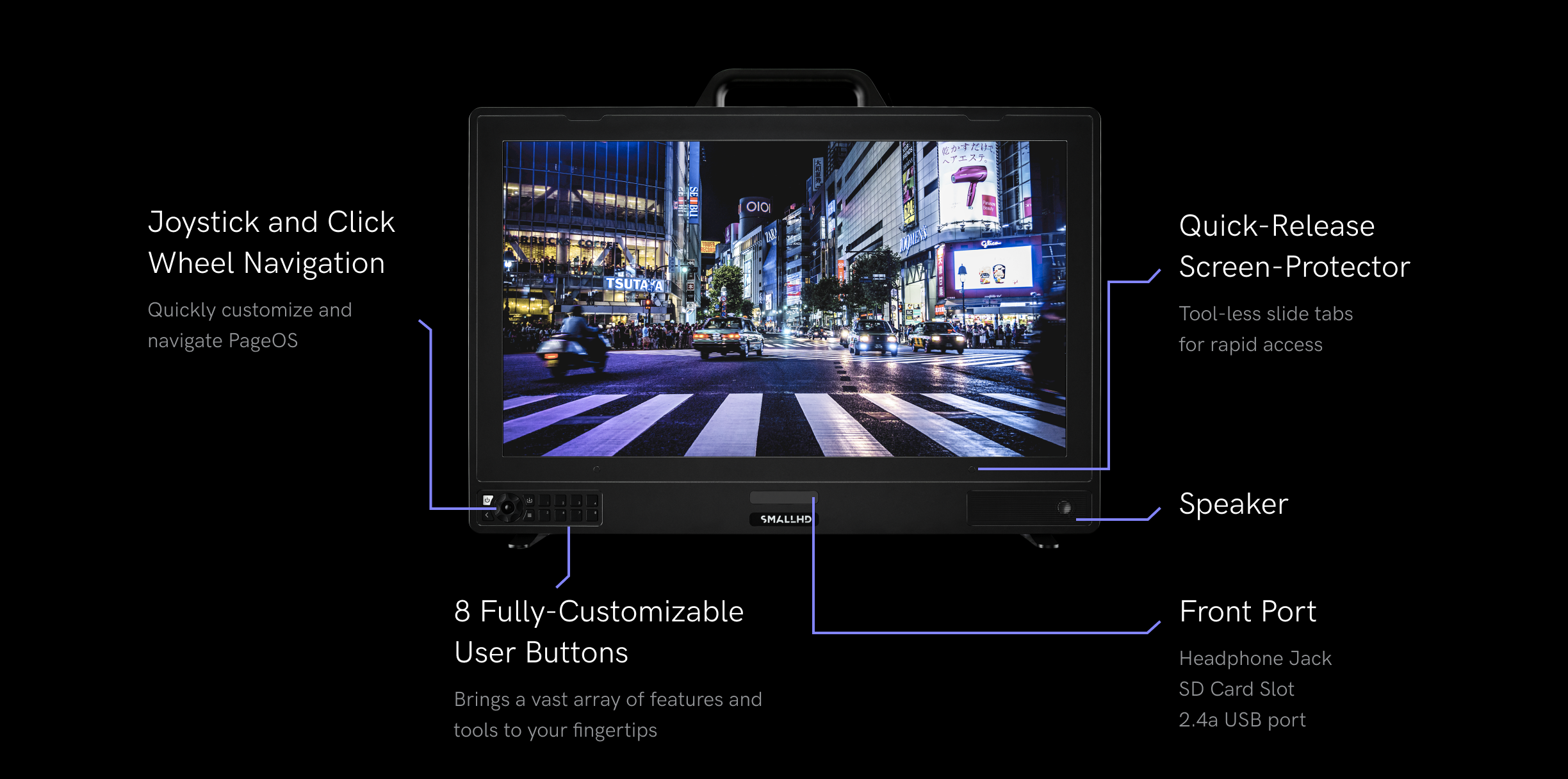

Lightweight. Durable.
4K HDR.

A Unibody Smart Chassis with a full complement of
I/O options, integrated mounting
points, and a
field-tested reputation for lightweight durability.

Mini-LED Local Dimming
(FALD)
Panel Technology

The Vision Series Monitors feature a mini-LED local
dimming array, with over 2000 individual
zones
behind the panel. This high-density of zones allows
for excellent handling of high-contrast
areas across
the screen. SmallHD’s FALD controls the light
behind the LCD array by modulating
each individual
LED dynamically. This rapid-fire on/off is controlled
by a proprietary algorithm
designed by SmallHD,
with the goal of achieving HDR contrast ratios.

Explore Vision 4K Monitors

No Longer Available

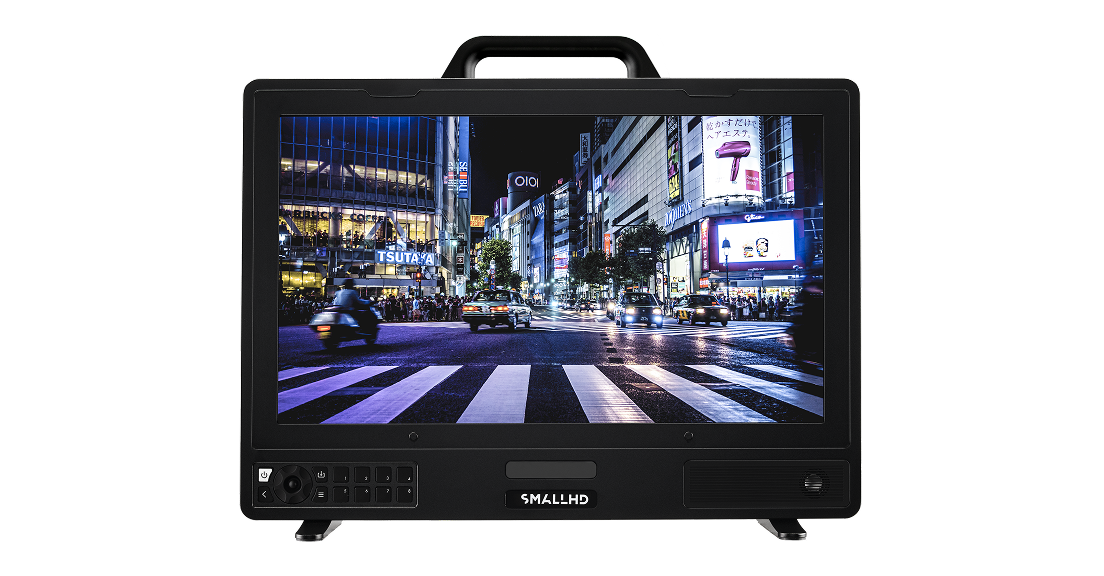

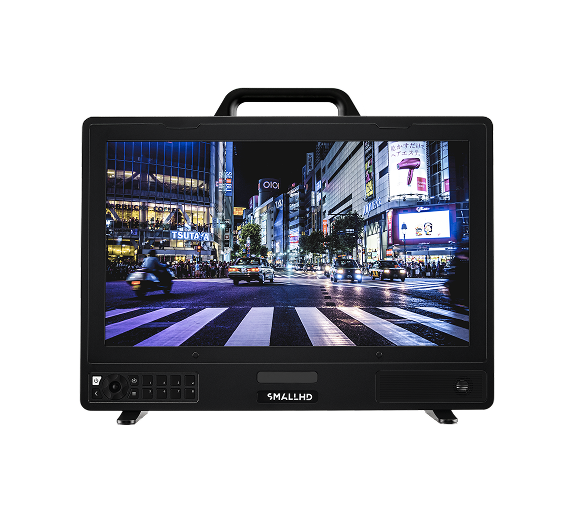

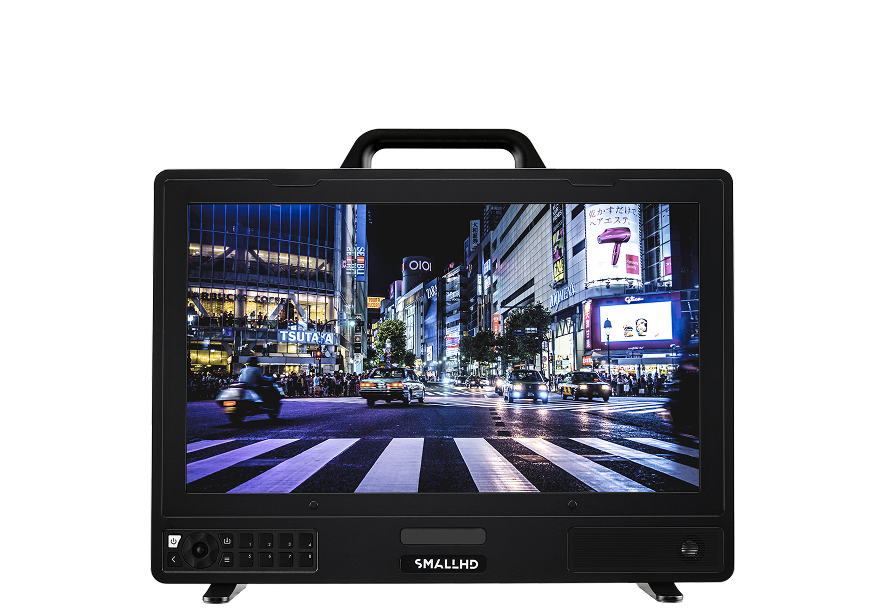

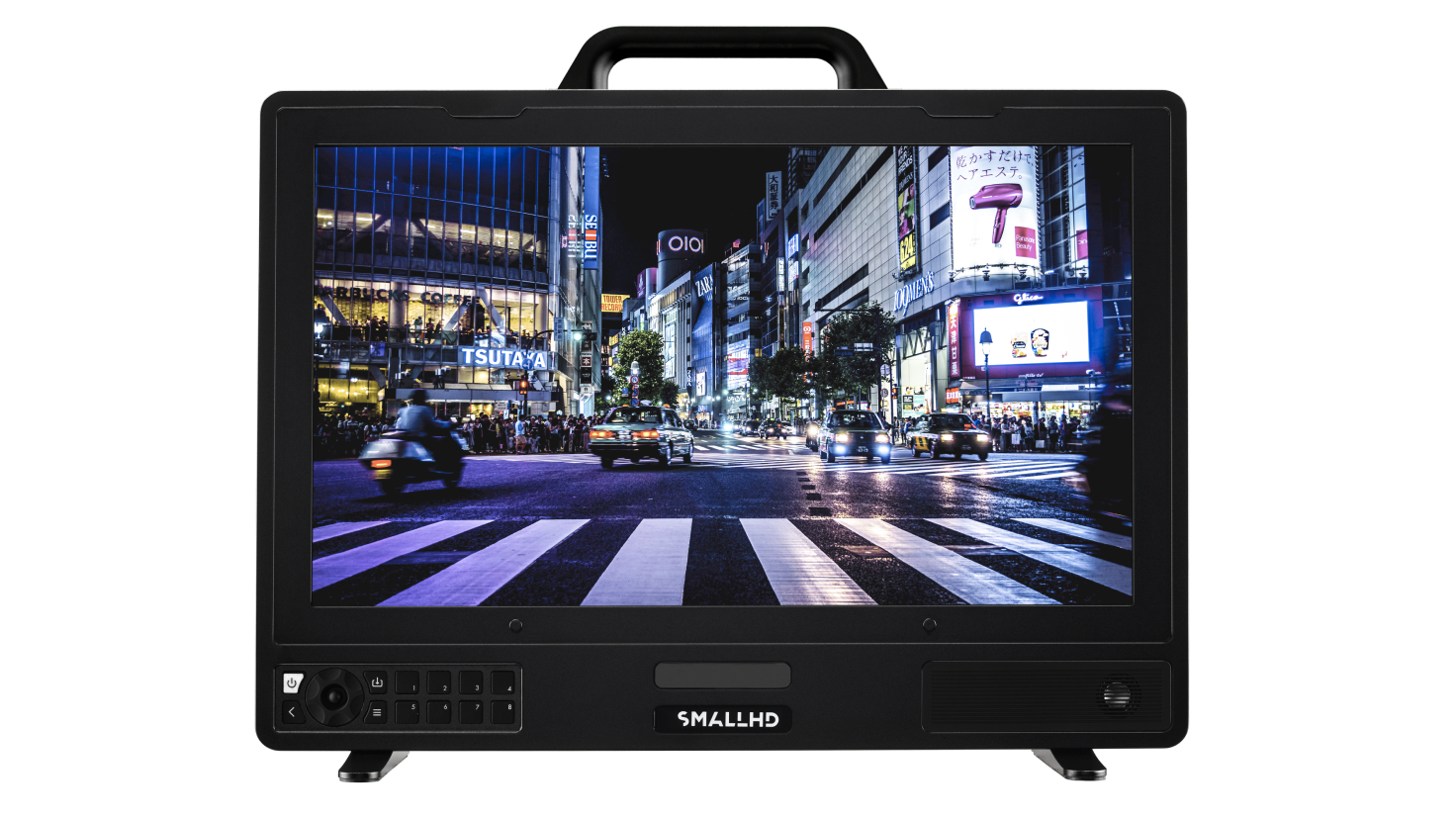

Vision 17

Learn More

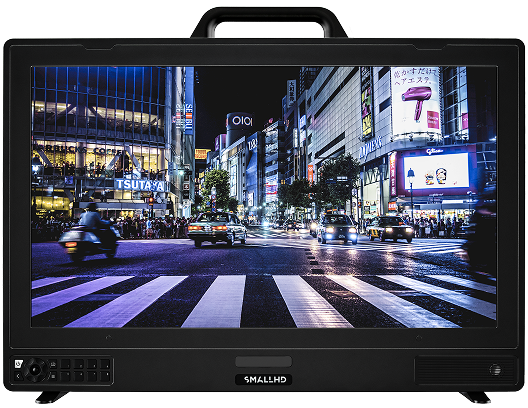

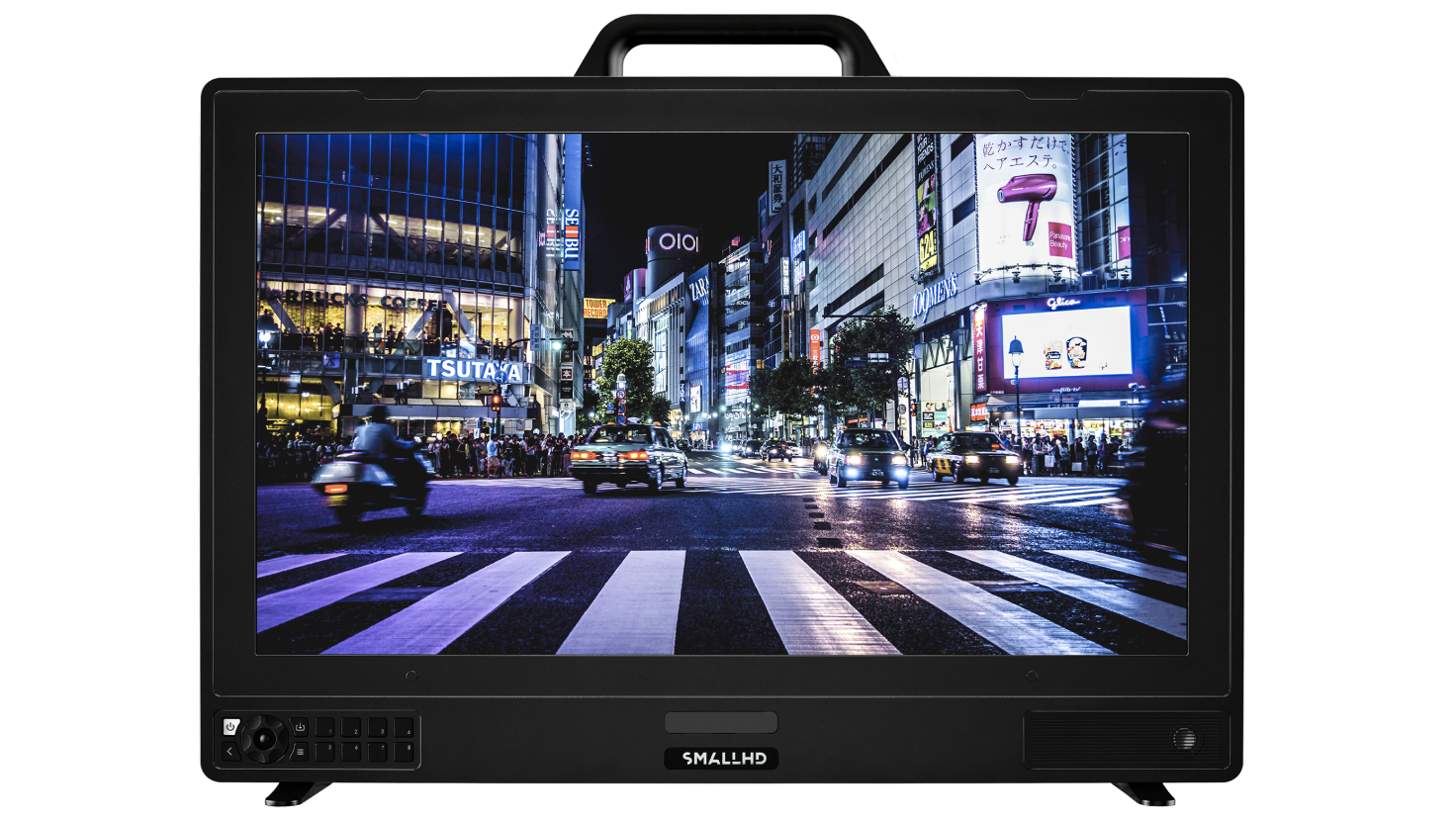

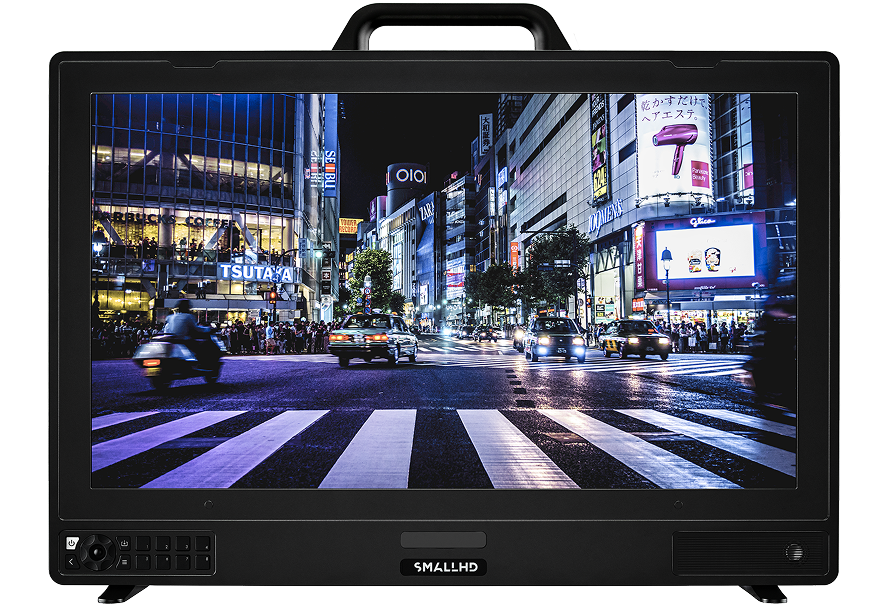

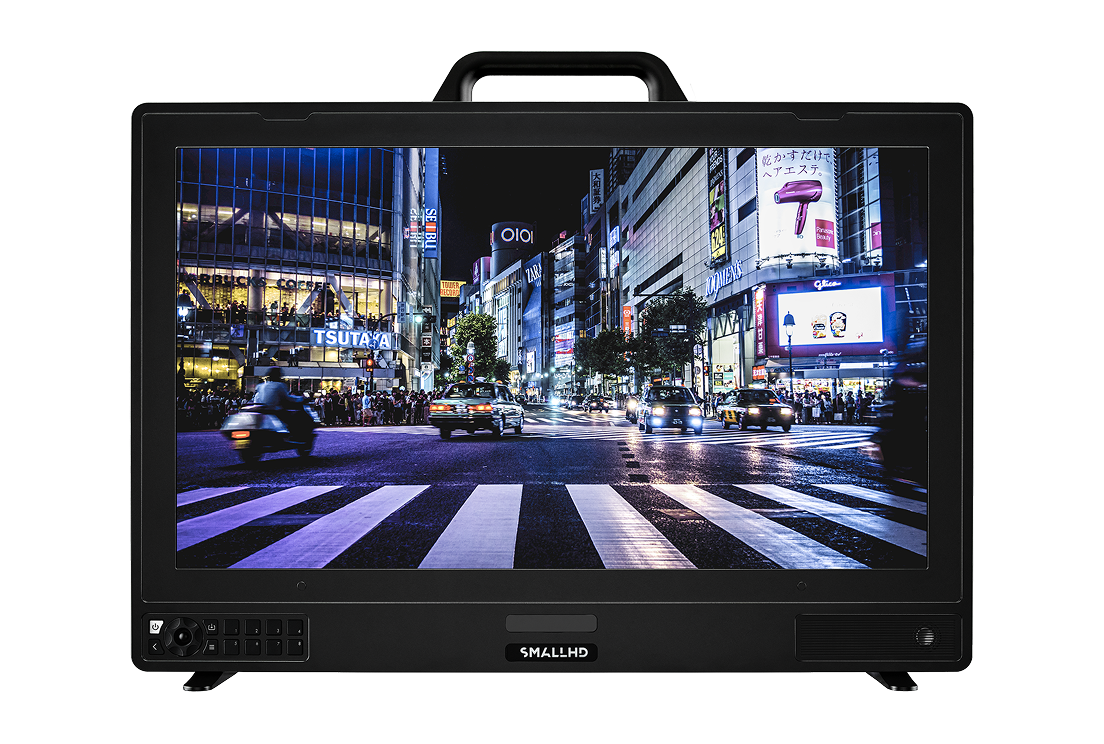

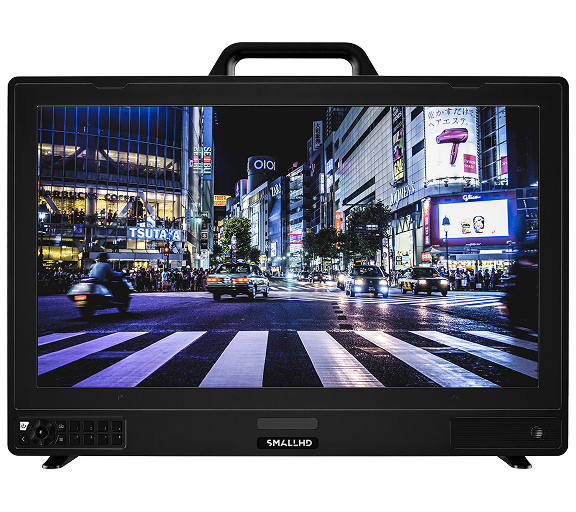

Vision 24

Buy

Screen Protectors + Sunhoods + Cases + More

Explore
Accessories

Configure your 4K Monitor to your workflow.

Shop Now
