Ultra 7

Ultra 7

Ultra Smart.
Ultra Bright.
Ultra Durable.

Ultra Smart.
Ultra Bright.
Ultra Durable.

Designed to withstand the extremes of any
production environment, Ultra 7 has the
processing power of our 4K Production
monitors, customizable function buttons,
and shock absorbing bumpers.

Designed to withstand the extremes of any
production environment, Ultra 7 has the
processing power of our 4K Production
monitors, customizable function buttons,
and shock absorbing bumpers.

Shop Now

Ultra 7

Ultra 7

Rugged, powerful, and feature-rich, the Ultra 7 offers
2300nits of brightness, 6G-SDI that allow you
to ingest
4K signal, a 2-Pin power passthrough for
cleaner
builds, an Ethernet port for camera control,
plus a
joystick and tactile physical buttons for
control in any
conditions. Utilize all your favorite
PageOS tools,
functions, and settings pages on a
fully-loaded 7-inch
touchscreen monitor.

Rugged, powerful, and feature-rich, the Ultra 7 offers
2300nits of brightness, 6G-SDI that allow you
to ingest
4K signal, a 2-Pin power passthrough for
cleaner
builds, an Ethernet port for camera control,
plus a
joystick and tactile physical buttons for
control in any
conditions. Utilize all your favorite
PageOS tools,
functions, and settings pages on a
fully-loaded 7-inch
touchscreen monitor.

Shop Now

2300nits

2300nits

Max Brightness

Max Brightness

6G-SDI

6G-SDI

4K End-to-End Workflows

4K End-to-End Workflows

1000:1

1000:1

Contrast Ratio

Contrast Ratio

Camera Control

Camera Control

ARRI, RED®, Sony

ARRI, RED®, Sony

1920x1200

1920x1200

Resolution

Resolution

10-Bit

10-Bit

Color Processing

Color Processing

Hardware Overview

Hardware Overview

SmallHD Ultra 7 Front Overview

SmallHD Ultra 7 Front Overview

Raised edges protect
touchscreen from damage

Rubber shock-
absorbing bumpers

Touchscreen

4X Custom-
Function
Buttons

Back-button

Back
Button

Joystick

SmallHD Ultra 7 Back Overview

SmallHD Ultra 7 Back Overview

Sealed Thermal
Management System

Anodized
Aluminum Chassis

SD Card Slot

UI Lock
Switch

RJ45
Ethernet

Locking
USB

2-Pin
Power
(In/Out)

6G-SDI

SmallHD Ultra 7 on RED Digital Cinema Camera outdoor SmallHD Ultra 7 on RED Digital Cinema Camera outdoor

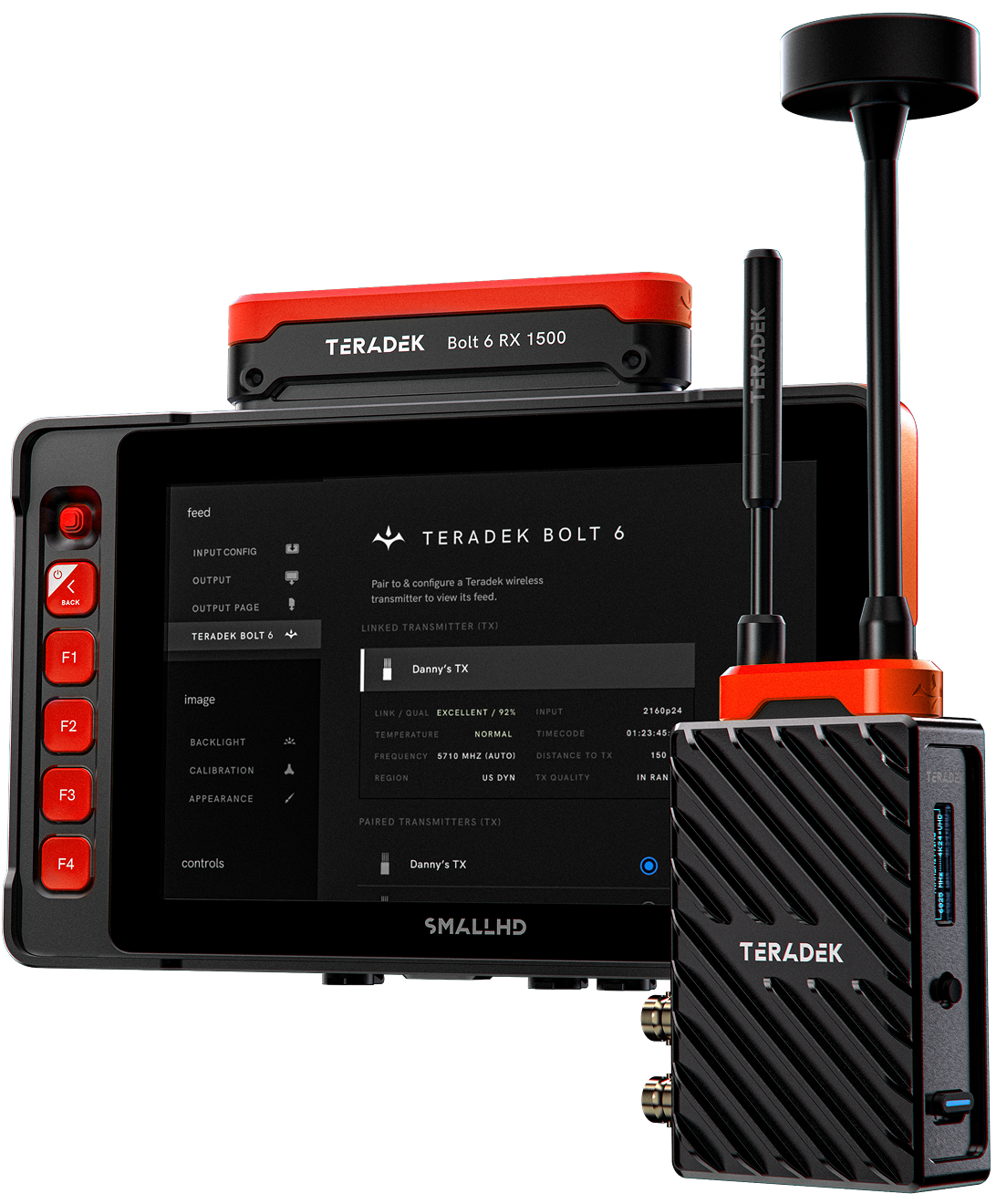

Ultra 7 + Teradek Bolt 6

Ultra 7 + Teradek Bolt 6

Built-in Wireless Video

Built-in Wireless Video

Finally, an ultra bright 7-inch handheld monitor
with a fully-
contained Teradek Bolt 6. Rugged and
protected from the
elements, this is a handheld
monitor that can withstand even the
most
destructive directors.

Built-in Bolt 6 units utilize the clear airwaves of the
newly-open
6GHz spectrum, with RX and TX
models that are compatible with
any Teradek Bolt
6, and backwards-compatible with any Bolt 4K
system in 5GHz mode.

Finally, an ultra bright 7-inch handheld monitor
with a fully-
contained Teradek Bolt 6. Rugged and
protected from the
elements, this is a handheld
monitor that can withstand even the
most
destructive directors.

Built-in Bolt 6 units utilize the clear airwaves of the
newly-open
6GHz spectrum, with RX and TX
models that are compatible with
any Teradek Bolt
6, and backwards-compatible with any Bolt 4K
system in 5GHz mode.

SmallHD Ultra 7 with built-in Teradek Bolt 6 Wireless Video Solution SmallHD Ultra 7 with built-in Teradek Bolt 6 Wireless Video Solution

BACKWARDS COMPATIBLE

BACKWARDS COMPATIBLE

Works with Teradek
Bolt 4K
and Bolt 6

Works with Teradek
Bolt 4K
and Bolt 6

LONG RANGE

LONG RANGE

750ft & 1500ft range
models available

750ft & 1500ft range
models available

SEAMLESS DESIGN

SEAMLESS DESIGN

Ergonomic, Cable-Free
Workflow

Ergonomic, Cable-Free
Workflow

QD-LED
Edge-Lit LCD
Panel
Technology

QD-LED
Edge-Lit LCD
Panel
Technology

SmallHD LEDs for Ultra 7 panels have the highest
tolerance for
color uniformity. These LEDs are built
into an edge-lit panel stack
that diffuses and
focuses the light through a quantum-dot film,

ensuring the purest color accuracy on our panels.
The result is an
extremely bright monitor with
excellent image fidelity.

SmallHD LEDs for Ultra 7 panels have the highest
tolerance for
color uniformity. These LEDs are built
into an edge-lit panel stack
that diffuses and
focuses the light through a quantum-dot film,

ensuring the purest color accuracy on our panels.
The result is an
extremely bright monitor with
excellent image fidelity.

Rain, Sun or Snow

Built to Withstand
the Harshest

Production
Environments

With an IP53 rating and ultra-durable water, dirt,
heat, cold, and drop-
resistant chassis, Ultra 7 was
designed to withstand all the rigors and
elements
that professional filmmakers endure.

With an IP53 rating and ultra-durable water, dirt,
heat, cold, and drop-resistant chassis, Ultra 7 was
designed to withstand all the rigors and elements
that professional filmmakers endure.

icons

Fully Sealed

All electronic components are
sealed with caps to protect
against dust and water.

icons

Impact Resistant

Able to withstand most
drops,
tumbles, and
impacts with
shock-
absorbing bumpers.

icons

Thermal Management

Ultra 7 can operate at freezing
as well as scorching
temperatures (0º-40ºC).

Ultra 7 can operate at
freezing as well as
scorching temperatures
(0º-40ºC).

icons

Strength & Durability

Strong, durable chassis
with raised edges to
protect the screen.

icons

Strength & Durability

Strong, durable chassis
with raised edges to
protect the screen.

icons

Water Resistant

Water resistant with
protection
against damp
scenarios.

icon Snap out the sun

The Folding
Magnetic Sunhood

The reimagined Ultra 7 sunhood connects
to the monitor in
seconds using a
powerful magnetic array. This means no

tools for installation or removal. When
closed, the sunhood
also provides total
protection of the panel.

PageOS

PageOS

Next-Gen Tools, Customizable
Workflow,
Premium UX

Next-Gen Tools, Customizable
Workflow,
Premium UX

Smarter, more intuitive software tools for at-a-
glance adjustments, effortless navigation, and
more
accurate exposure and color control.
Personalized Page Profile, Focus and Exposure
Assist, Lookaround
Camera Control, Tetrahedral
LUT Interpolation, Advanced Teradek RT
Overlays
, and more.

Smarter, more intuitive software tools for at-a-
glance adjustments, effortless navigation, and
more
accurate exposure and color control.
Personalized Page Profile, Focus and Exposure
Assist, Lookaround
Camera Control, Tetrahedral
LUT Interpolation, Advanced Teradek RT
Overlays
, and more.

Look-Around Camera Control

Look-Around Camera Control

A Camera Interface on
Every Page

A Camera Interface on
Every Page

View and adjust crucial camera-control functions and
PageOS tools at the same time on Smart 7 Series
Monitors with a camera-control interface anchored to
every page.

View and adjust crucial camera-control functions and
PageOS tools at the same time on Smart 7 Series
Monitors with a camera-control interface anchored to
every page.

View and adjust crucial camera-control
functions and PageOS tools at the same
time on Smart 7 Series Monitors with a
camera-control interface anchored to
every page.

View and adjust crucial camera-control
functions and PageOS tools at the same
time on Smart 7 Series Monitors with a
camera-control interface anchored to
every page.

Teradek RT Overlays

Teradek RT Overlays

Lens Control Overlays

Lens Control Overlays

View critical lens, focus, iris, and zoom
data on your
monitor. Quickly create,
edit, and delete visual marks
on the
focus scale, set on-screen limits, and
even
pinch-zoom the scale for extremely
precise focal-
change sequences.

View critical lens, focus, iris, and zoom
data on your
monitor. Quickly create,
edit, and delete visual marks
on the
focus scale, set on-screen limits, and
even
pinch-zoom the scale for extremely
precise focal-
change sequences.

EL Zone

EL Zone

Light Metering Evolved

Light Metering Evolved

Developed by legendary cinematographer,
Ed
Lachman, ASC, EL Zone is a stop-based
exposure map
tool that works like a virtual
spot meter, replacing IRE
exposure values
with stops. Sensor data from the
camera
provides a reference point, and a false color
represents each stop above and below 18%
gray,
allowing for easier, more intuitive on-
set
communication.

Developed by legendary cinematographer,
Ed
Lachman, ASC, EL Zone is a stop-based
exposure map
tool that works like a virtual
spot meter, replacing IRE
exposure values
with stops. Sensor data from the
camera
provides a reference point, and a false color
represents each stop above and below 18%
gray,
allowing for easier, more intuitive on-
set
communication.

CUSTOM Function Buttons

A Tactile Complement to
Touchscreen UI

Easily accessible physical buttons give you
full control
of the monitor, even when
you’re wearing gloves. Assign
workflow
shortcuts for software tools, switch inputs,
adjust display brightness, and more.

Multi-View

Handheld Multi-View

We’ve added the powerful Multi-View* tools from our
4K Production Monitors to Ultra 7. View two camera
feeds and use multiple tools pages all on screen at the
same time side-by-side.

*Coming Soon

Compare
Smart 7 Models

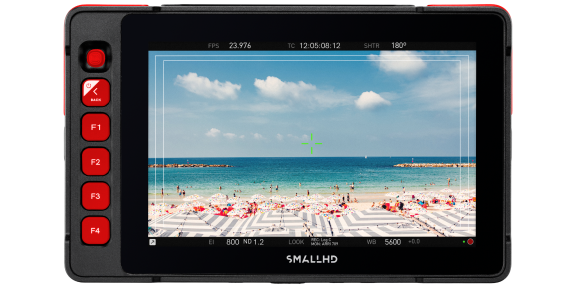

SmallHD Ultra 7 SmallHD Ultra 7
Ultra 7
Shop Now Starting at $2,999.00

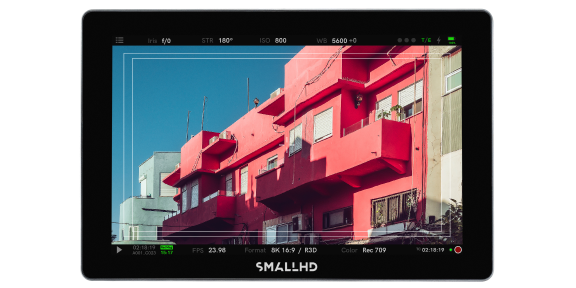

SmallHD Cine 7 SmallHD Cine 7
Cine 7
Learn More Shop Now Starting at $2,199.00

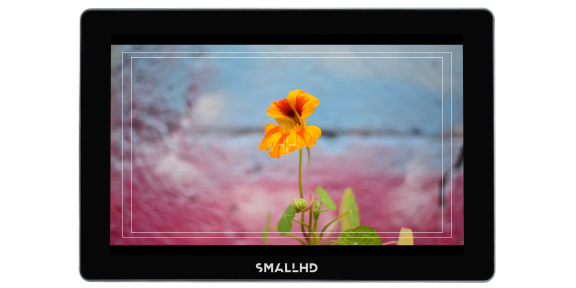

SmallHD Indie 7 SmallHD Indie 7
Indie 7
Learn More Shop Now Starting at $1,399.00
Brightness
Brightness

2300nits

1800nits

1000nits

SDI
SDI

1 x 6G-SDI Input (4Kp30)
1 x 6G-SDI In / Out (4Kp30)

1 x 3G-SDI Input
(1080p60)
1 x 3G-SDI In /
Out (1080p60)

1 x 3G-SDI Input
(1080p60)
1 x 3G-SDI In /
Out (1080p60)

HDMI
HDMI

1 x HDMI 2.0 In
(4Kp60)
1 x HDMI 2.0 Out
(4Kp60)

1 x HDMI 2.0 In
(4Kp30)
1 x HDMI 2.0 Out
(4Kp30)

1 x HDMI 2.0 In
(4Kp30)
1 x HDMI 2.0 Out
(4Kp30)

Panel Resolution
Panel Resolution

1920x1200

1920x1200

1920x1200

Camera Control Compatibility*
Camera Control Compatibility*

ARRI, RED®,
Sony VENICE

ARRI, RED®,
Sony VENICE

RED®

Control Interface
Control Interface

Joystick, Buttons,
Touch

Touchscreen

Touchscreen

IP Rating
IP Rating

IP53

Wireless Video
Wireless Video

Built-in Bolt 6 TX
/ RX Options

Bolt 6 TX / RX
Monitor Modules

Bolt 6 TX / RX
Monitor Modules

Battery Support
Battery Support

Optional B, Gold, V-Mount
Micro
Battery Plates

Sony L-Series,
Optional Gold or
V-Mount

Sony L-Series,
Optional Gold or
V-Mount

Control Ports
Control Ports

Ethernet, 5-Pin
locking USB

Ethernet, USB-
Micro

USB-Micro

Power Input
Power Input

2-Pin Locking
Connector

2-Pin Locking
Connector

Barrel Connector

Weight
Weight

900g / 32 oz

556g / 20 oz

556g / 18.9 oz

*Sold Separately

Shop Ultra 7

Choose the Ultra 7 that is right for you

   coming soon

Ultra 7

sub-text

SmallHD Ultra 7 SmallHD Ultra 7 $2,999.00 Shop Now
Coming Soon

Ultra 7 Transmitter

Integrated Teradek Bolt 6

SmallHD Ultra 7 Transmitter SmallHD Ultra 7 Transmitter Starting at $4,299.00 Learn More

Ultra 7 Receiver

Integrated Teradek Bolt 6

SmallHD Ultra 7 Receiver SmallHD Ultra 7 Receiver Starting at $4,499.00 Shop Now
Pay in full or choose a flexible payment
plan with shop pay logo

Shop Ultra 7 Accessories

Sunhoods

SmallHD Smart 7 Sunhoods

Micro Battery Plates

SmallHD Micro Battery Plates B-Mount Gold-Mount V-Mount SmallHD Micro Battery Plates B-Mount Gold-Mount V-Mount

Monitor Hinges

SmallHD Monitor Hinges

Camera Control

Camera Control

SmallHD Camera Control SmallHD Camera Control Shop All

Handles and Straps

Handles and Straps

SmallHD Handles and Straps SmallHD Handles and Straps Shop All

Antenna Color Bands

Antenna Color Bands

SmallHD Color Bands SmallHD Color Bands Shop All

Screen Protectors

Screen Protectors

SmallHD Screen protector SmallHD Screen protector
Shop All
View All Ultra 7 Accessories

Need more help?

Need more help?

Talk to a Product
Specialist

Talk to a Product
Specialist

overlayImg overlayImgmob
