Focus Pro RED® DSMC2™ Kit

SKU:SKU: MON-FOCUS-PRO-DSMC2-KIT

  • Display: 5-inch, 1280x720, 294 PPI
  • Input: SDI
  • Output: ⅛” Headphone Jack, Camera Control
  • Power: 2-pin (7-16.8v), 1x Sony L-Series Battery (Not Included)

This Focus Pro Monitor Kit includes the software license and control cable you need to use the 5" daylight viewable monitor to control RED® DSMC2 cameras. Similar to the SmallHD Cine 7, the Focus Pro gives users quick access to essential RED camera settings with intuitive, user friendly controls.

Camera Control for RED

Gain access, with no limitations.

Focus Pro unleashes the full potential of RED DSMC2 cameras and KOMODO* with intuitive touch-screen menu control.  Connected via the locking 5-pin USB port, RCP functionality enables unfettered access to camera operations and project settings such as recording formats, resolution, frame rates, shutter speed, aperture adjustment, autofocus, output tone map, highlight roll-off, 3D LUTs, Run/Stop and more.

*The camera control license is an additional purchase and not included with this kit.

Robust Design

The elegance of strength.

Constructed with a sturdy, milled aluminum chassis that weighs only 9.6 oz, Focus Pro withstands heavy everyday operation and frees you to operate on the fly, without the restrictions of weight.  3 x ¼”-20 mounting points make it easy to secure to a rig, and the new Focus Pro Hinge Mount (sold separately) gives RED users the flexibility to tilt the monitor for optimal viewing.

Brilliant Daylight Viewable Monitoring

See everything.

Focus Pro offers a radiant 5-inch display with sharp resolution and daylight visibility for accurate image control. The SDI input provides real-time monitoring, and retracting menus offer an unobstructed field of view, so you see exactly as your camera sees.

SmallHD PageOS

Every tool you need for absolute precision.

With the power of PageOS software, utilize all of the dependable SmallHD features such as customizable frame guides, Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and--as always--achieve tack-sharp critical focus with SmallHD Focus Assist. Learn more about PageOS.

Extended Energy

Once you start, never stop.

Low power consumption allows you to run without excessive swapping. A redesigned battery mount provides a stronger, more secure attachment for all compatible L-Series type batteries, while the monitor may also be powered by an external source via a 2-pin input.

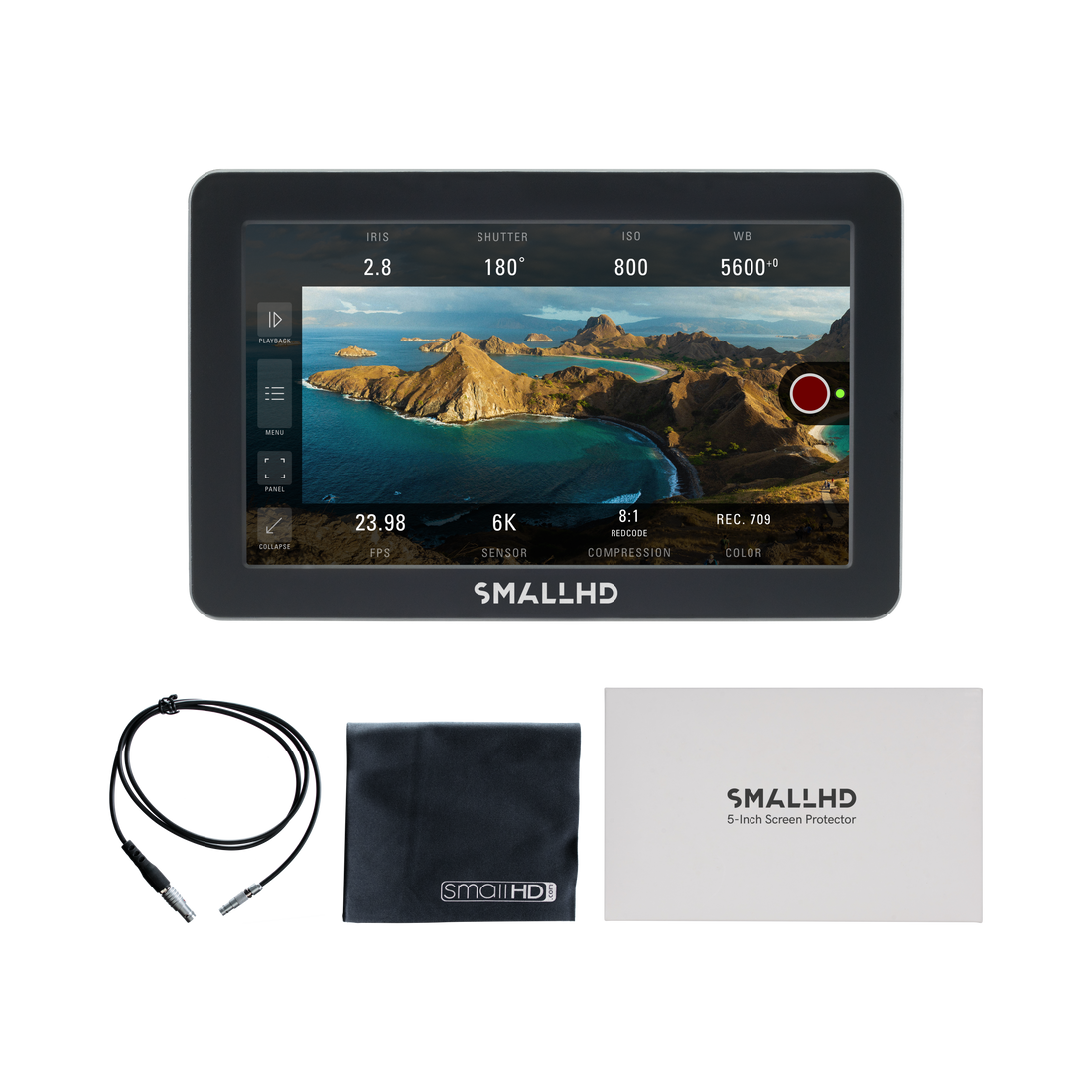

  • 1 x Focus Pro RED® DSMC2™ Kit
  • 1x Cleaning Cloth
  • 1x 36-inch Camera Control Cable for RED® DMSC2®
  • 1x Ultraclear Screen Protector
View full details

Technical Specs
