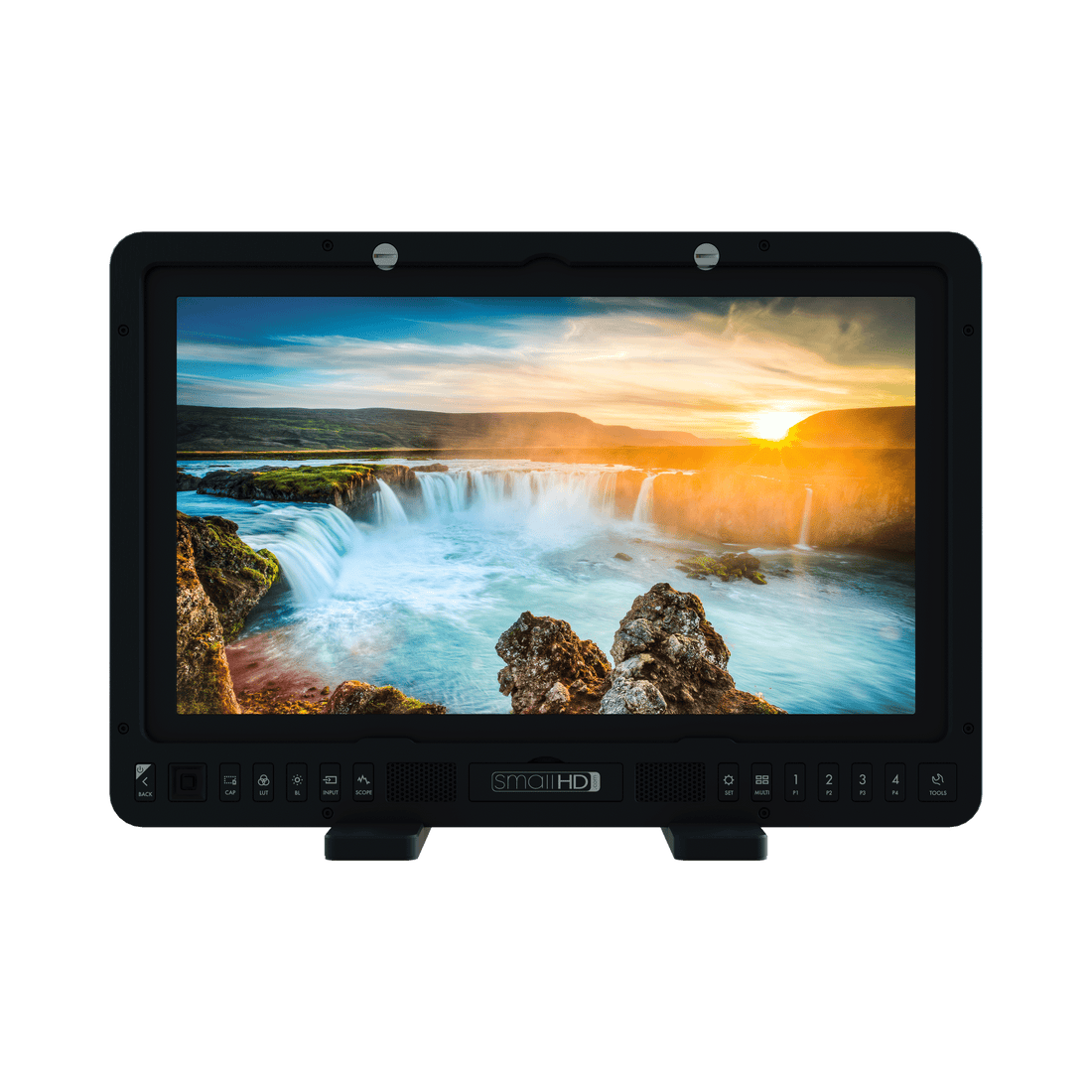

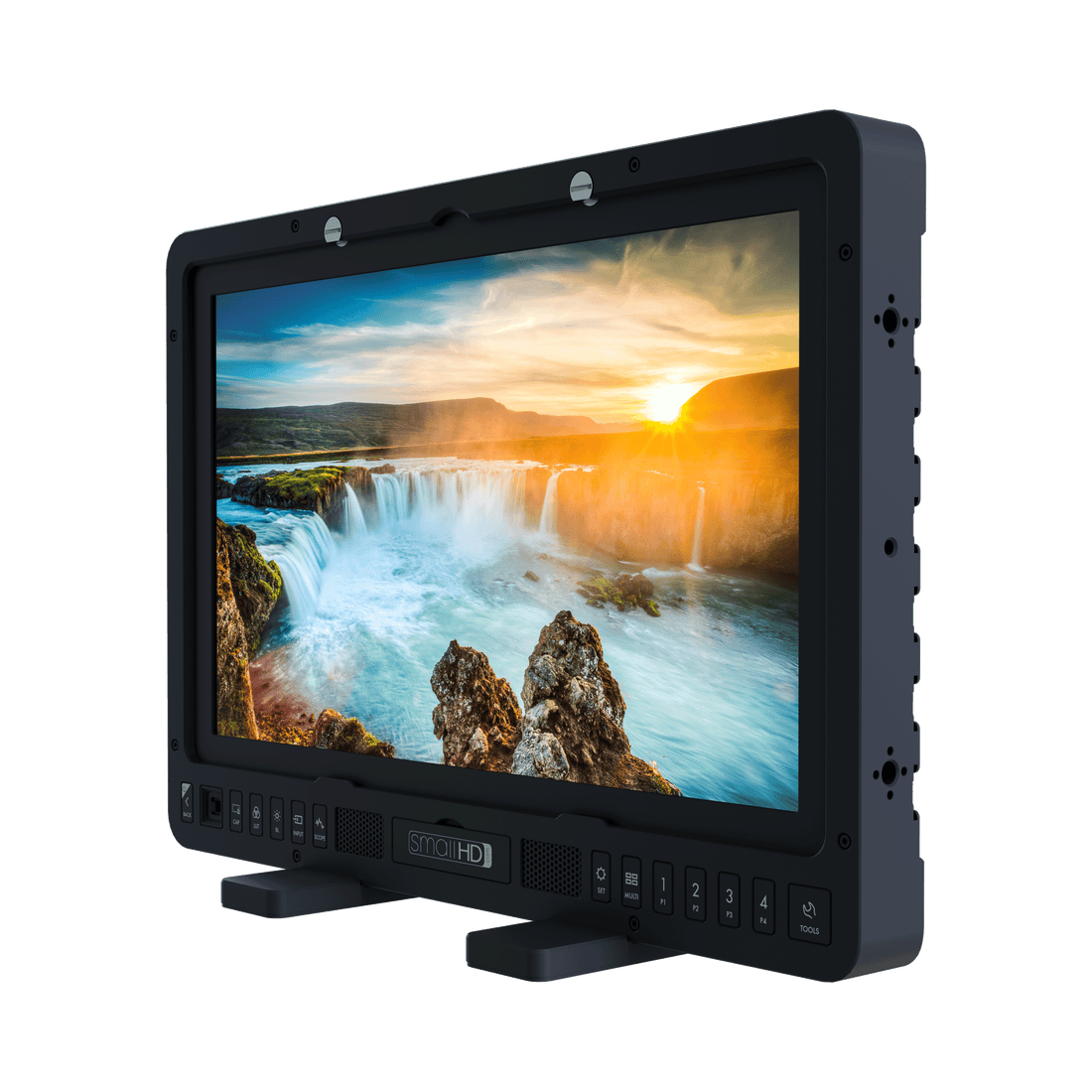

1703 P3X Monitor
MON-1703-P3X
















1703 P3X Monitor
MON-1703-P3X
The 17" monitor that rivals OLED with Incredible color accuracy and daylight viewability.
Input: 2x SDI, HDMI
Output: 2x SDI, HDMI
Display: 17-inch, 1920x1080, 900nits
DESCRIPTION
SPECS
SHIPS WITH
COMPATIBLE WITH
BUNDLES
DESCRIPTION
DISCONTINUED This item has been discontinued and is no longer stocked. Please view our production monitor collection for current options.
Color Confidence Brief overview video of the 1703 P3X with our friend Wes.
SPECS
SKU
SKU
MON-1703-P3X
Product ID
Product ID
4377645744261
Environmental
Item Weight (oz)
193
Package Weight (oz)
269.76
Height (in)
11.7
Width (in)
17
Length/Depth (in)
2.5
Compliance
FCC, IC, CE, RoHS
Operating Temperature
32F - 100F
Storage Temperature
0F -104F
Screen Protection
Optional Acrylic Screen Protector

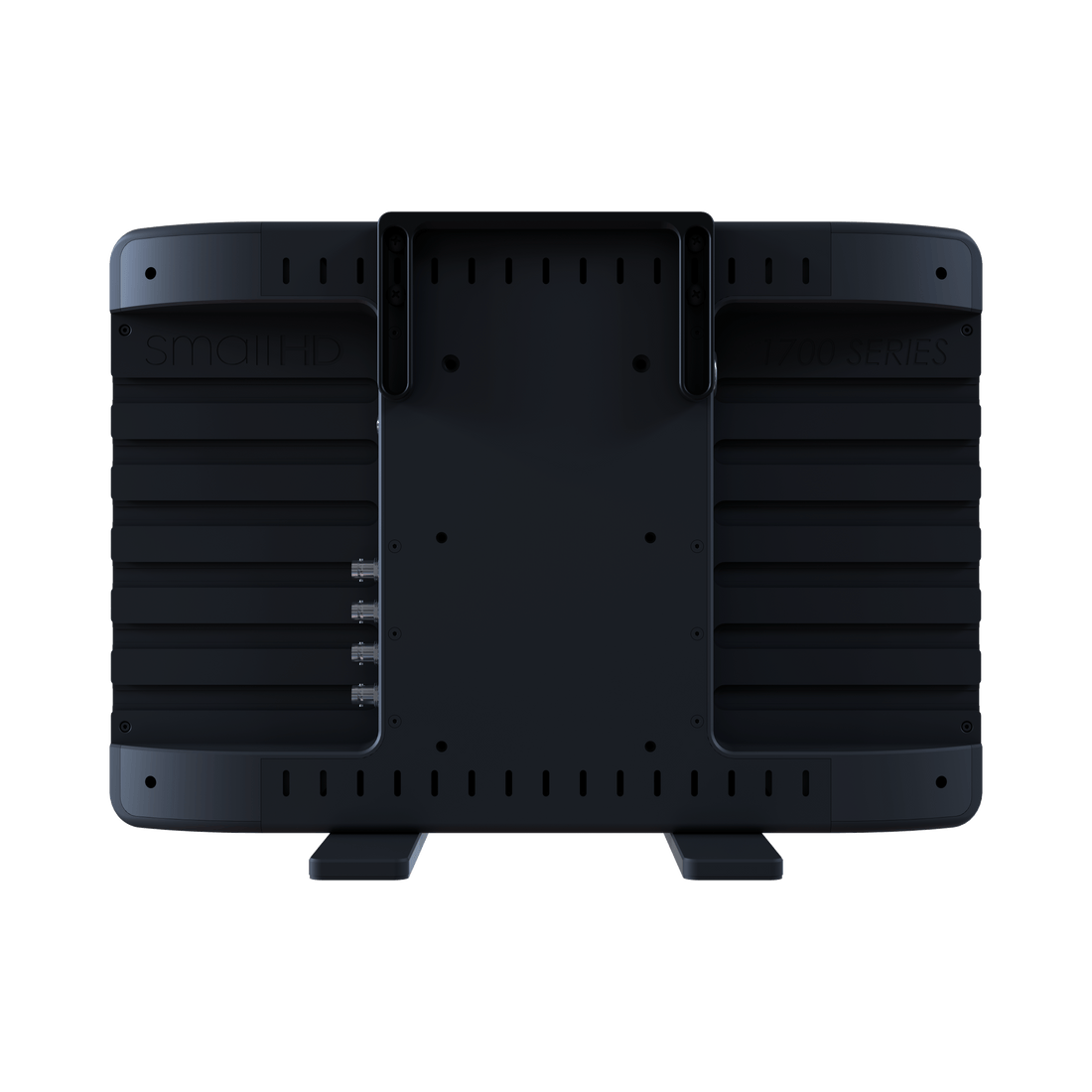

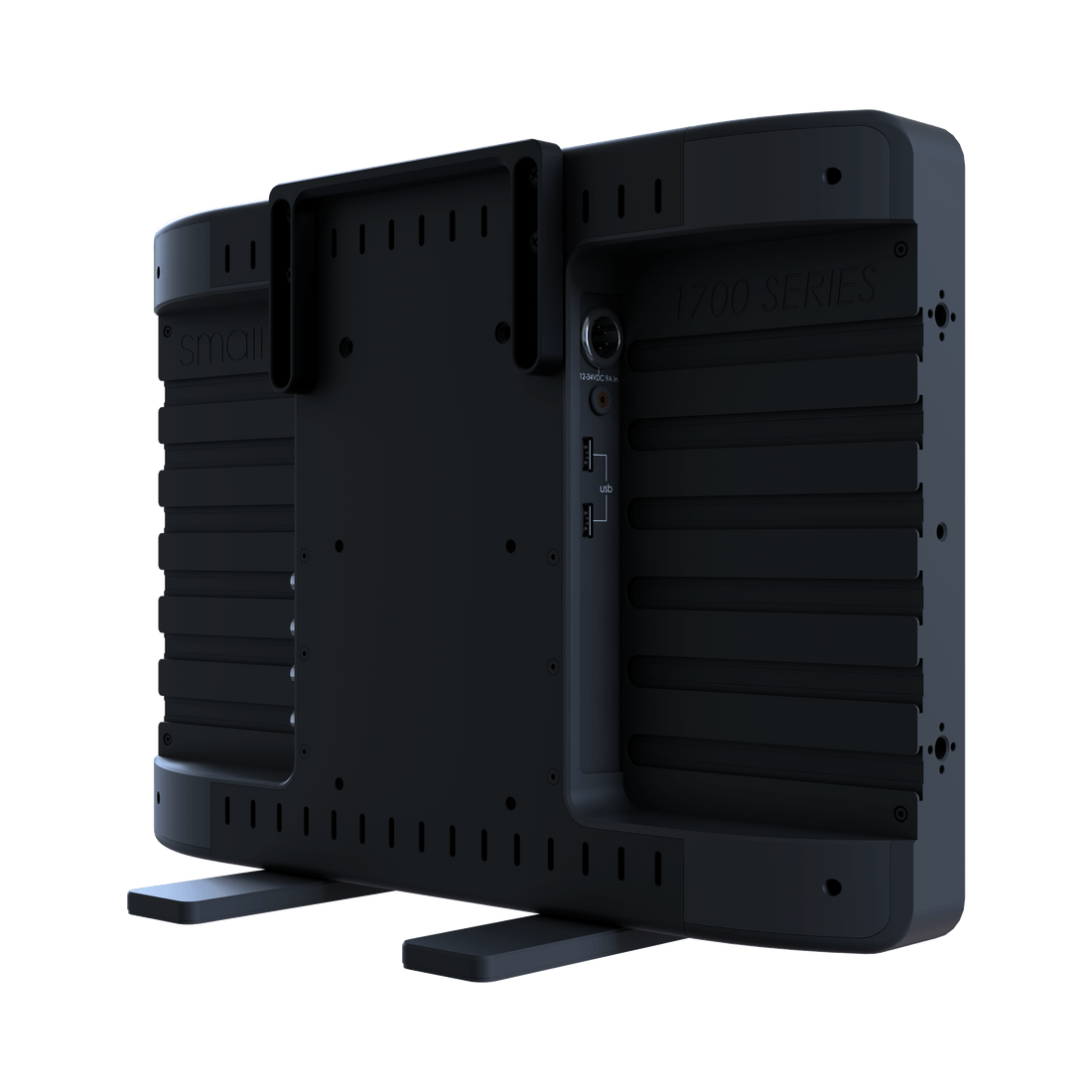

Mount Points
Multiple ¼”-20 & ⅜”-16 Threads on Top, Bottom, Left & Right Sides. Cold Shoe Style Rails on Back of Monitor. Available Cheeseplate for Battery Bracket Mounting. Available Rapid Rail Mount interfaces with cold shoe slots for 2 additional ¼”-20 threads.
Construction
Full Anodized Aluminum Chassis with Four Sided Rubber Impact Protection for LCD Panel
Display
Panel Type
IPS LCD
Diagonal Size
17
Resolution
1920x1080
Pixel Density
133 ppi
Aspect Ratio
16:9
Active Area
16.52
Max Brightness
900nits
Contrast
1400:1
Gamut
100% DCI-P3
Color Depth
8+2 Bit
Viewing Angle
178 degrees Vertical and Horizontal
Backlight Type
White LED
Adjustable Backlight
Yes - 0 - 100 in 6 steps with 100-nit studio mode
Adaptive Color (YN)
No
Input Signal
3G-SDI Input Types
YCC 4:2:2 @ 10bit: 1920x1080p60, 1920x1080p59.94, 1920x1080p50, 1080i60, 1080i59.94, 1080i50
HD-SDI Input Types
YCC 4:2:2 @ 10bit: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080psF25, 1080psF24, 1080psF23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types
YCC 4:2:2 @ 10bit: 480i29.97, 576i25
HDMI Input Types
Supports YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50
Component Input Types
Not Supported
Composite Input Types
Not Supported
Audio Input Types
HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels
Output Signal
3G-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
HD-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types
YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
HDMI Output Types
YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
Component Output Types
Not Supported
Composite Output Types
Not Supported
Audio Output Types
HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

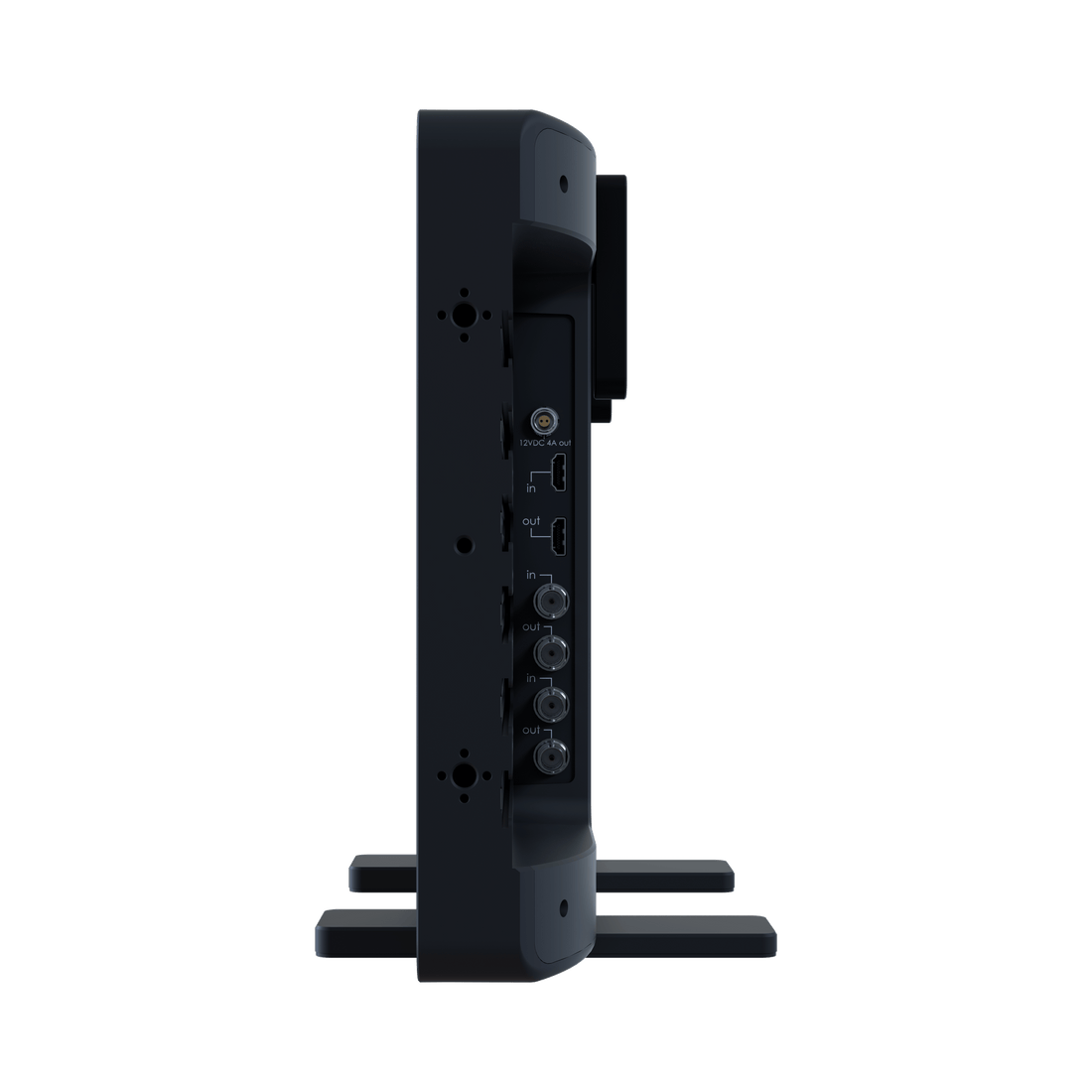

Connector Type
SDI
2x 3G Inputs (BNC), 2x 3G Outputs (BNC)
HDMI
1x Input, 1x Output
Component
Not Supported
Composite
Not Supported
Audio
1x ⅛” Headphone Jack on Front of Monitor

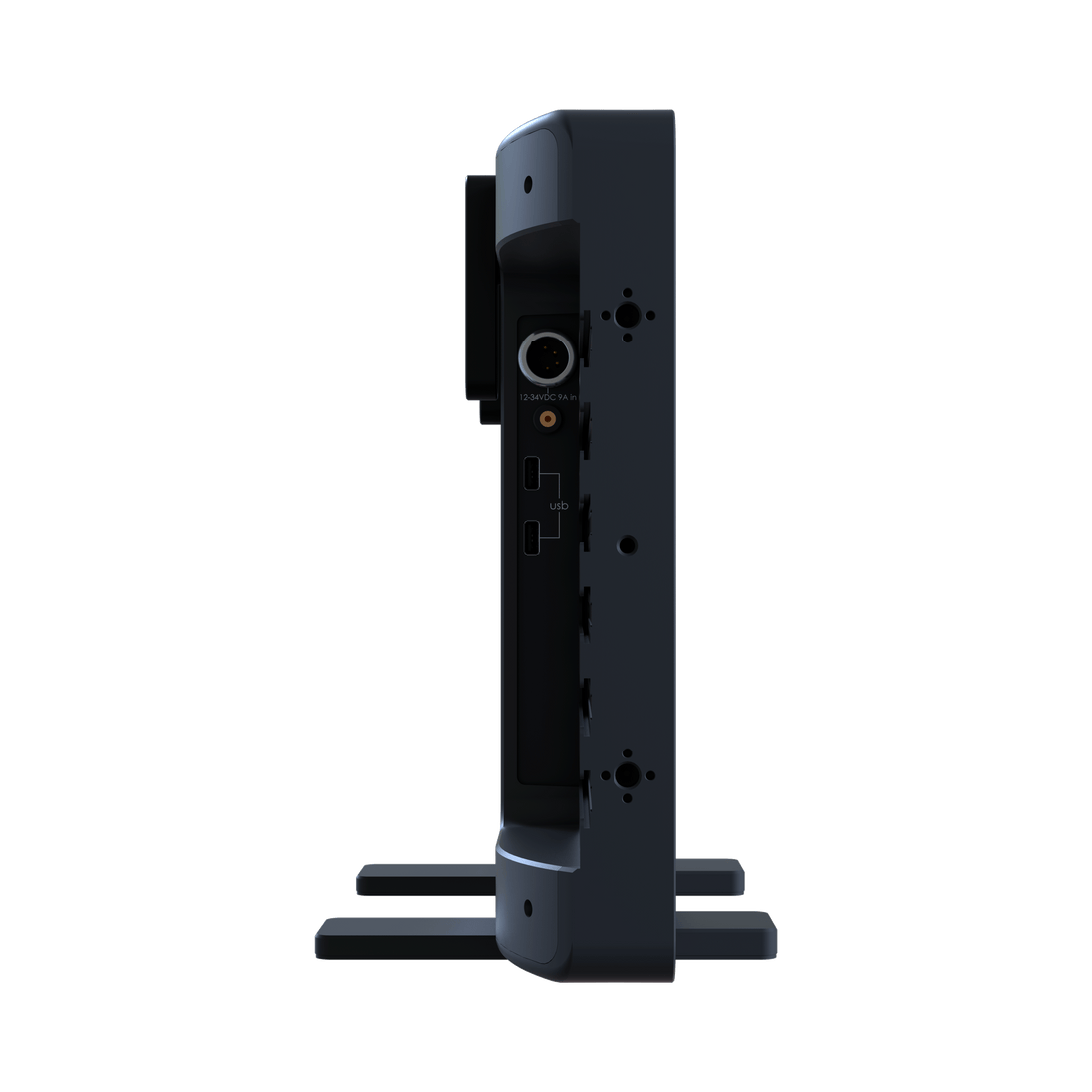

Power In
1x AC Power Input - 3 Prong 90-260V, 1x XLR 4-pin Input 12-34VDC, 1x Lemo Output 12VDC @ 4A Max
Power Out
1x Lemo Output 12VDC @ 4A Max
USB
1x Front USB2, 2x Rear USB2
Controls
Primary
Joystick Navigation, Dedicated Back Button. Additional Dedicated buttons for: LUT Selection; Backlight Level; Input Switch; Settings Menu; Multi View; Page 1-4 Instant Selection; Tools Menu
Record Capture
Dedicated Capture Button on Front Bezel
Data I/O
Storage Media
SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving
USB
USB ports support storage devices for LUTs, Captured Images, Image Overlays, Profile Saving.
Power
Connector
Single XLR 4-pin 12-34V DC IN for Battery or Power Supply, 12V Lemo 2-pin OUT MAX 2A
Voltage
DC: 12 - 34 VDC
Consumption
Max draw (100% BL) is 48.9W, Min draw (0 % BL) is 17.7W
Power Supply
Included
Battery Types
Gold-Mount, V-Mount with optional Battery Plate Accessory
Overload Protection
Yes
Output Voltage
12V @ 2A via 2-pin Locking LEMO Connector
Battery Charging Time
Battery Charging Not Supported
Software
Pixel Zoom
2x & 4x Zoom with smooth pan via joystick
Frame Guides
Yes: Preset Aspect Ratios & Customizable
DSLR Scale
Canon 5DMkii & Canon 7D
Custom Scale
Yes: Image Crop & Scale Tool for Overscan; Image Size & Position for Underscan
Anamorphic De-Squeeze
Yes: 1.33x, 1.5x, 1.66x, 2.0x
Image Rotate
Yes - Automatic or Manual Control
Image Flip
Yes - Automatic or Manual Control
Cross Conversion
Yes: HDMI → SDI & SDI → HDMI
Focus Assist
Yes - User Adjustable Color Style and Intensity
Peaking
Yes - User Adjustable Intensity
False Color
Yes - Rainbow & Arri Style
Zebra
Yes - Dual - User Configurable
Waveform
Yes - Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope
Yes
RGB Parade
Yes - Fully User Customizable
Histogram
Yes - Luma & RGB Style
Image Capture
Yes - With Dedicated Button
Custom LUTS
Yes - Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream
Yes - Available on SDI 1 or HDMI Out. Applied on Output Preview Page.
LUT Import
via SD Card or USB Storage Device
Overlay
Yes with Opacity Slider and Blink Setting
